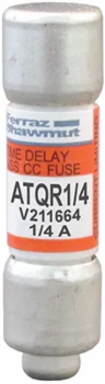

Mersen ATQR1/4 Fuse Amp-Trap 2000 600V 0.25A Time-Delay Class CC, Height 2.12 Inch, Length 1.62 Inch
- MPN: ATQR1/4
- UPC: 782001906306
- PPN: FER-ATQR1/4
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- Specifically engineered for control transformers and solenoids, the ATQR1/4 features specialized time-delay characteristics that allow for momentary startup surges. This prevents unnecessary downtime caused by "nuisance blowing," ensuring your inductive loads remain energized during initial power-up while still providing precision protection.
- This rejection-style fuse is designed to meet strict UL requirements, featuring a physical rejection tip that prevents the installation of lower-rated or non-current-limiting fuses. This mechanical safeguard ensures your branch circuits are always protected by the correct Class CC components, maintaining the safety integrity of your electrical panels and distribution systems.
- With a massive 200kA interrupting rating at 600VAC, the ATQR1/4 can safely extinguish extreme fault currents that would destroy standard fuses. This high-capacity current limitation significantly reduces "peak let-thru" energy, protecting sensitive downstream components like PLC inputs and small motors from catastrophic thermal and magnetic damage.
- Built with a high-grade fiberglass body and silica filler, this fuse provides exceptional dimensional stability and arc-quenching capabilities. Unlike paper or plastic alternatives, these materials won't degrade in high-heat settings or humid manufacturing floors, ensuring reliable performance and accurate firing when a fault occurs.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC
- Fuse Type
- Time-Delay
- Interrupting Rating AC
- 200 kA
- Speed/Characteristic
- Time Delay
- Connection/Terminal Type
- Ferrule
- Length
- 1.5 in
- Weight
- 0.017 lb
- Body/Insulating Material
- GMG (Fiberglass body with high-grade silica filler)
Amperage0.25 A
Fuse ClassClass CC
Interrupting Rating DC100 kA
MountingClip
Connection/Terminal MaterialTin-Plated Copper
Height2.12 in
Frequency50/60 Hz
ROHS ComplianceYes
