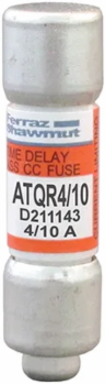

Mersen ATQR4/10 Amp-Trap 2000® Time-Delay Class CC Fuse, 0.4A, 600V, 1.5 Inch Length
- MPN: ATQR4/10
- UPC: 782001906320
- PPN: FER-ATQR4/10
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- Engineered specifically for highly inductive loads, this fuse safely absorbs the harmless inrush currents commonly generated by control transformers, solenoids, and relays during startup. This critical time-delay performance eliminates frustrating, expensive nuisance tripping on your factory floor, keeping essential industrial control panels running smoothly without sacrificing primary overcurrent protection.
- Featuring a specialized Class CC rejection-style footprint, this compact 10x38mm fuse guarantees integration only with compatible matching rejection-style blocks or holders. This fail-safe mechanical design strictly prevents the dangerous, accidental insertion of lower-rated or non-current-limiting fuses, ensuring your facility's power distribution system remains flawlessly code-compliant and secure
- Strictly rated to handle 0.4 Amps at up to 600V AC, this Mersen Amp-Trap 2000® fuse delivers highly sensitive, fast-acting short-circuit isolation combined with reliable overload defense. By actively limiting destructive peak fault currents before they reach maximum intensity, it acts as a critical firewall for expensive control board electronics, significantly extending the lifespan of your commercial machinery.
- Boasting a massive 200,000 Amp Short Circuit Current Rating (SCCR) and full UL/CSA listings, this industrial-grade component is built to safely clear extreme high-fault electrical events without rupturing. Utilizing OEM-tested, compliant hardware actively minimizes dangerous arc flash hazards for your maintenance personnel and guarantees your motor control centers effortlessly pass stringent local NEC inspections.
Documentation & Downloads
Specifications
Additional
- Amperage
- 0.4 A
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Speed/Characteristic
- Time Delay
- Connection/Terminal Type
- Ferrule
- Mounting
- Clip
- Filler Material
- High-grade silica
- Certifications
- UL Listed, CSA Certified
- Weight
- 0.017 lb
Voltage600 V AC
Fuse ClassClass CC
Length1.5 in
Connection/Terminal MaterialTin-Plated Copper
Body/Insulating MaterialGMG (Fiberglass)
RoHS ComplianceYes
Frequency50/60 Hz
Label ColorOrange
