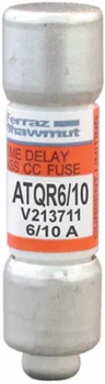

Mersen ATQR6/10 Amp-Trap 2000® Class CC Fuse, 600V, 0.6A, Time Delay, 0.41 Inch Diameter
- MPN: ATQR6/10
- UPC: 782001906344
- PPN: FER-ATQR6/10
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Length
- 1.5 in
- Weight
- 0.017 lb
- Connection/Terminal Type
- Ferrule
- Material
- GMG Body/Insulating Material (Fiberglass body, high-grade silica filler)
- Frequency
- 50/60 Hz
Amperage0.6 A
Time DelayYes
Diameter0.41 in
MountingClip
Connection/Terminal MaterialTin-Plated Copper
Fuse ClassClass CC
ROHS CompliantYes
