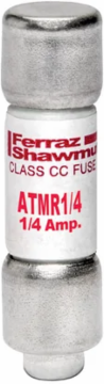

Mersen ATMR1/4 Amp-Trap 600V Fast-Acting Class CC Fuse, 0.25A, 1.5 Inch Length
- MPN: ATMR1/4
- UPC: 782001903398
- PPN: FER-ATMR1/4
CAD
$10.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
Features
- Operating with highly advanced fast-acting, current-limiting characteristics, the ATMR1/4 clears short circuits in milliseconds. This ultra-fast response isolates electrical faults immediately, mitigating upstream damage and keeping your PLCs, control relays, and sensitive instrumentation entirely safe from high-energy thermal spikes.
- Designed with standard Class CC rejection dimensions (10.4 times 38.1 mm), this fuse physically prevents the insertion of lesser-rated or non-current-limiting midget fuses into the circuit. This mechanical fail-safe ensures field maintenance teams always replace like-for-like, preserving the engineered safety and code compliance of your industrial control panels.
- Boasting an exceptional 200 kA AC and 100 kA DC interrupting rating at 600 Volts, this compact component easily handles high-inrush main distribution panels. It isolates high-energy faults safely without exploding or fracturing, ensuring full protection even when installed directly adjacent to large-capacity supply transformers
- Specially calibrated at a precise 0.25-amp (1/4 A) threshold, this fuse is the ideal choice for protecting low-load control transformers and pilot light circuits. It prevents prolonged low-level overcurrent conditions from generating hidden overheating hazards, safeguarding your overall automation infrastructure.
Documentation & Downloads
Specifications
Additional
| Voltage | 600 V |
|---|---|
| Interrupting Rating AC | 200 kA |
| Fuse Class | Class CC |
| Length | 1.5 in |
| Connection/Terminal Material | Tin-Plated Copper |
| Weight | 0.017 lb |
| Frequency | 50/60 Hz |
| ROHS Compliant | Yes |
| Amperage | 0.25 A |
|---|---|
| Interrupting Rating DC | 100 kA |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| Connection/Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| AC or DC | AC/DC |
| Compliance | UL Listed Standard 248-4, CSA Certified C22.2 No. 248.4 |
