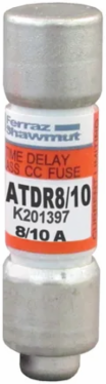

Mersen ATDR8/10 Fuse Amp-Trap 2000® 600V 0.8A Time-Delay Class CC, Compact Design, 1.5 Inch Length
- MPN: ATDR8/10
- UPC: 782001908478
- PPN: FER-ATDR8/10
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- Engineered as a highly compact, current-limiting Class CC fuse, the ATDR series is specifically designed to provide superior protection for sensitive branch circuits. By restricting the amount of destructive energy that passes through during a fault, it prevents catastrophic damage to downstream components like contactors and solid-state relays, ensuring your automated systems remain operational and your control panels stay code-compliant.
- Featuring advanced time-delay (slow-blow) characteristics, this 0.8-Amp fuse is optimized to withstand the temporary current spikes associated with small motor startups and control transformer energization. This prevents frustrating nuisance tripping during routine equipment cycles, allowing your machinery to reach operational speed without unnecessary downtime or premature fuse replacement.
- Designed with a unique rejection tip, this fuse is physically incompatible with standard non-rejection fuse holders, ensuring that only a high-interrupting Class CC fuse can be installed. This critical mechanical safety feature prevents technicians from accidentally substituting a lower-rated fuse, guaranteeing that your high-fault current protection levels are never compromised during field service.
- Rated for up to 600V AC with a massive 200,000 Amp interrupting rating, this fuse provides heavy-duty protection for the most demanding industrial power environments. Whether you are protecting a motor control center or a localized machine circuit, the high interrupting capacity ensures that even the most severe short circuits are cleared safely, protecting both your hardware and your personnel from arc-flash hazards.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Speed/Characteristic
- Time Delay
- Length
- 1.5 in
- Weight
- 0.017 lb
- Connection Type
- Ferrule
Amperage0.8 A
Fuse ClassClass CC
Frequency50/60 Hz
MountingClip
Connection MaterialTin-Plated Copper
Body MaterialGMG
