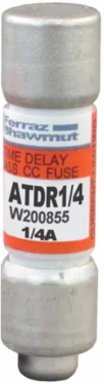

Mersen ATDR1/4 Fuse Amp-Trap 2000® 600V 0.25A Time-Delay Class CC, Length 1.5 Inch, Diameter 0.41 Inch
- MPN: ATDR1/4
- UPC: 782001908454
- PPN: FER-ATDR1/4
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- As a premier Class CC fuse, the ATDR series is specifically engineered for high-density electrical environments, offering a compact 13/32" x 1-1/2" footprint that maximizes space without sacrificing power. This specialized rejection-style design prevents the accidental insertion of lesser-rated fuses, ensuring your sophisticated industrial control systems and branch circuits remain protected by the exact level of defense required by the NEC.
- Featuring a highly precise time-delay (slow-blow) characteristic, this 1/4-amp fuse is optimized to withstand the significant momentary current spikes associated with small motor startups and control transformers. By providing "close-sizing" protection, it eliminates frustrating nuisance trips during normal equipment cycling while maintaining a hair-trigger response to genuine overcurrent faults and short circuits.
- The ATDR1/4 is a highly current-limiting component, engineered to rapidly interrupt fault currents before they reach their destructive peak. This extreme speed-of-response protects sensitive electronic relays, contactors, and solid-state components from thermal and magnetic stress, significantly extending the lifespan of your automated machinery and reducing the risk of catastrophic system failure.
- With a robust dual-rating of 600V AC and 300V DC, this versatile fuse is ideal for diverse applications ranging from industrial motor branches to modern solar (PV) string protection. The high 200kA interrupting rating ensures that even under maximum fault conditions, the fuse will safely clear the circuit, providing a critical safety barrier that meets or exceeds UL 248-4 and CSA C22.2 safety standards.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC / 300 V DC
- Fuse Class
- Class CC
- Interrupting Rating AC
- 200 kA
- Length
- 1.5 in
- Connection Type
- Ferrule
- Mounting
- Clip
- Body/Insulating Material
- GMG
Amperage0.25 A
Fuse TypeTime Delay
Interrupting Rating DC100 kA
Weight0.017 lb
Connection MaterialTin-Plated Copper
Frequency50/60 Hz
ApprovalsUL Listed, CSA Certified, DC Listed
