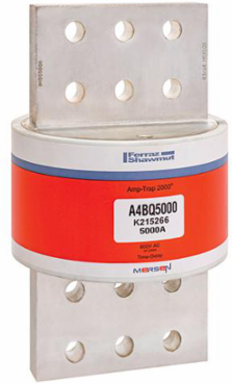

Mersen A4BQ5000 Fuse Amp-Trap 2000 600V 5000A Time-Delay Class L, Bolted, 10.75 Inch Length
- MPN: A4BQ5000
- UPC: 782001930196
- PPN: FER-A4BQ5000
CAD
$4020.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Amp-Trap 2000 A4BQ fuses are 20 percent more current limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ's built-in 4-second time-delay characteristic (at 500percent of rated current) accommodates harmless inrush currents with no nuisance opening.
Specifications
Key Specifications
- Rated voltage AC UL
- 600 V
- Ampere Rating
- 5000 A
- AC or DC
- AC
- Speed/Characteristic
- Time Delay
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Connection/Terminal Type
- Blade
- Length
- 10.75 in
Frequency (Hz)50/60 Hz
ROHS CompliantYes
Fuse ClassClass L
MountingBolted
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialGMG
Weight31.5 lb
