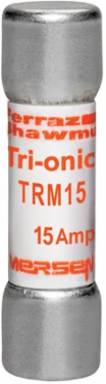

Mersen TRM15 Fuse Tri-Onic® 250V 15A Time-Delay Midget - 1-1/2 Inch x 13/32 Inch Dimensions
- MPN: TRM15
- UPC: 782001746612
- PPN: FER-TRM15
CAD
$5.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
Features
- Featuring standard midget dimensions of 1-1/2 in times 13/32 in (10 times 38 mm), the TRM15 offers a drop-in physical replacement for all standard midget-style fuse holders, disconnect switches, and panelboard clips. This universal architectural sizing eliminates component sourcing confusion and guarantees immediate compatibility across a broad array of multi-manufacturer control circuits.
- Engineered with a precise time-delay thermal characteristic, this 15A fuse safely tolerates temporary inductive inrush currents and motor startup surges while still providing rapid overcurrent clearing during true short-circuit events. This dual-element capability minimizes unnecessary facility downtime and prevents the premature degradation of critical small-motor control systems.
- Rated for up to 250V AC with a robust 10,000-amp interrupting rating (IR), this fuse is purpose-built to isolate localized faults safely. It effectively contains internal electrical arcing and clears low-voltage faults instantly, keeping your upstream distribution panels protected and ensuring compliance with stringent commercial workplace safety standards.
- Fully UL Listed to Standard 248-14 and CSA Certified to C22.2 No. 248.14, this supplemental protection device meets all North American electrical safety benchmarks. Incorporating these fully certified components into your industrial control panels ensures swift approval during local field inspections and maintains the structural validity of your equipment's factory warranty.
Documentation & Downloads
Specifications
Additional
- Voltage
- 250 V AC
- Interrupting Rating
- 10 kA
- Frequency
- 50/60 Hz
- Weight
- 0.013 lb
- Fuse Class
- Midget
- Connection/Terminal Material
- Tin-Plated Copper
- AC or DC
- AC
Amperage15 A
Speed/CharacteristicTime Delay: 12 seconds at 200%
Length1.5 in
Body/Insulating MaterialGMG
Connection/Terminal TypeFerrule
MountingClip
RoHS ComplianceYes
