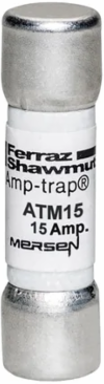

Mersen ATM15 Fuse Amp-Trap 15A Fast-Acting Midget Fuse, 600V, 100kA I.R., 1-1/2" x 13/32"
- MPN: ATM15
- UPC: 782001900694
- PPN: FER-ATM15
CAD
$8.90
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap® midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).
Features
- Rated for high-voltage performance up to 600V in both AC and DC environments, this versatile midget fuse is ideal for a wide range of diverse applications, including photovoltaic (PV) string protection and industrial branch circuits. Its dual-voltage capability simplifies your inventory by providing a single, reliable solution for multi-platform electrical protection.
- Despite its compact 13/32" x 1-1/2" (10x38mm) physical footprint, this fuse delivers a massive 100,000 Amp interrupting capacity. This high rating ensures the fuse can safely clear extreme short-circuit events without exploding or compromising the surrounding equipment, maintaining the integrity of your electrical enclosure and protecting your technicians.
- Designed to the industry-standard midget fuse form factor, the ATM15 is fully compatible with all standard midget-style fuse blocks and finger-safe disconnect switches. This universal fitment ensures a secure, low-resistance connection, making it an easy drop-in replacement for any 15-amp supplemental protection requirement in commercial panels or OEM machinery.
- Fully UL Listed to Standard 248-14 and CSA Certified, the ATM series is specifically designed for supplemental overcurrent protection. By using a certified Mersen component, you ensure your equipment meets National Electrical Code (NEC) requirements for secondary circuit protection, providing peace of mind for inspectors and facility managers alike.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Interrupting Rating
- 100 kA
- Speed/Characteristic
- Fast-Acting
- Rated Voltage DC
- 600 V
- Length
- 1.5 in
- Weight
- 0.017 lb
- Connection Type
- Ferrule
- Compliance
- RoHS Compliant
Amperage15 A
Fuse TypeFast-Acting Midget
Rated Voltage AC600 V
Frequency50/60 Hz
Body/Insulating MaterialGMG
MountingClip
Connection MaterialTin-Plated Copper
