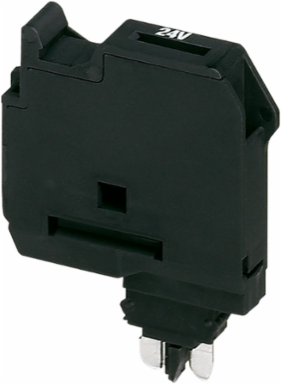

Schneider Electric NSYTRASF520 Component carrier, Linergy TR, for 5x20mm fuse, 6.2mm width, black

Component carrier, Linergy TR, for 5x20mm fuse, 6.2mm width, black
  • MPN: NSYTRASF520
  • PPN: SCH-NSYTRASF520

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$12.26/ EA

    Description

    Component carrier, Linergy TR, for 5x20mm fuse, 6.2mm width, black

    Specifications

    Complementary

    Fuse Size
    5 x 20 mm
    Number Of Measurement Input
    1 || 0
    Mounting Mode
    plug-in
    Cable Cross Section
    2.5-2.5 mm² || 4-4 mm²
    Colour
    black
    Number Of Terminals2 || 3
    Net Weight3.85 g
    Terminal Block Level2 || 1
    Quantity Per Setset of 10

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
    Halogen Content PerformanceHalogen free plastic parts product

    Specifications

    Product Compatibility
    TRV screw terminal - removable carrier disconnect terminal block || TRR spring terminal - removable carrier disconnect terminal block || TRP push-in - removable carrier disconnect terminal block
    Product Or Component Type
    component carrier
    Product Name
    TR
    Range
    Linergy
    Accessory / Separate Part Categoryconnection accessory
    Thickness6.2 mm
    Length28 mm
    Device Short NameTRA
