TeSys DF Fuse Carrier 1P 50A 690VAC Fuse Size 14x51mm
Schneider Electric

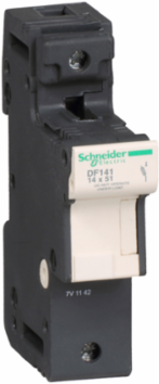

Schneider Electric DF141 TeSys DF Fuse Carrier 1P 50A 690VAC Fuse Size 14x51mm

  • MPN: DF141
  • PPN: SCH-DF141

CAD

$61.52

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links up to 50A and short circuit current up to 120kA@400V. Compact (26.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, EAC).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, Tunisia
Depth76.5 mm

Physical Attributes

Fuse Size
14 x 51 mm

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Fuse Type
0-50 A, gG, 0-50 A, aM
[Ue] Rated Operational Voltage
690 V AC, 690 V DC
Short-circuit Withstand
120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-380 kA 690 V IEC 60947-3
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0 kg CO2 eq., 0.011696666666666666
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
1 kg CO2 eq., 1.2228333333333332
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Serviceability
No
Field Service Division
PPIBS
Use Carbon Footprint
0.925
Weee Scope
In
Scope Perimeter
At least in Europe
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
Yes
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Control Type
toggle
Energy Efficiency Optimized
False
Mounting Position
vertical +/- 23°)
Number Of Poles
1P
Product Availability
Stock - Normally stocked in distribution facility
Product Or Component Type
fuse carrier
Quantity Per Set
set of 6
Range Of Product
TeSys fuse carriers
Software Version
EIME v5.8.1
Tightening Torque
3.5 N.m
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code
ENVPEP2010021EN
Pep Verification Date
2020-10-01
Psr Version
PSR-0005-ed2-EN-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
20
Energy Model - Installation [A5]
Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]
Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Width Nominal
26.5 mm
[Ipk] Rated Peak Withstand Current
15 kA with tubular links IEC 60269-1
[Uimp] Rated Impulse Withstand Voltage
8 kV
Package Weight(Lbs)
117.000 g
Warranty (In Months)
18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
10.5
Net Use Of Fresh Water (M3) Operational Energy Use [B6]
3.36
Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
0.0023
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
2.35
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
2.35
Water Pollution (M3) Distribution [A4]
6.09
Customs Code
8536904000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyIEC, UL Recognized, CSA, EAC
Connections - Terminalsscrew clamp terminals 2 2.5-10 mm²flexible with or without, screw clamp terminals 1 2.5-25 mm²rigid, screw clamp terminals 2 2.5-10 mm²rigidscrew clamp terminals 1 2.5-25 mm²flexible with or without
Carbon Footprint Of The Distribution Phase [A4]0.04035833333333333, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0003238333333333333, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.9 kg CO2 eq., 0.925
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV fuse - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1919
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeDF14
Device Short NameDF14
Fire Resistance960 °C IEC 60695-2-1
Mounting Support35 mm symmetrical DIN rail
Poles Description1P
Product NameTeSys DF
Protective TreatmentTH
RangeTeSys
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Fuse Type 9 Fuse TypeaM
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Height Nominal110.8 mm
[Ie] Rated Operational Current50 A
[Ui] Rated Insulation Voltage690 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]39.8
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]0.925
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]3.45
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]16.1
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]16.1
Water Pollution (M3) Manufacturing [A1-a3]348
Water Pollution (M3) Operational Energy Use [B6]38.2

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Product Compatibility
DF2EA fuse cartridge, DF2EN fuse cartridge
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Carbon Footprint
2.2002121666666663
Environmental Disclosure
ENVPEP2010021EN
Ip Degree Of Protection
IP20 conforming to IEC 60529
Packaging Without Single Use Plastic
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2020-10-01
Psr Version
PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Operation-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-40-80 °C-40-80 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2010021EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
fuse carrier
Range Of ProductTeSys fuse carriers

ETIM

ETIM 8
EC002705
ETIM 9EC002705

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
