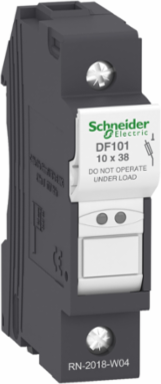

TeSys DF Fuse Carrier 1P 32A 690V 10x38mm, IP20 Certified
TeSys DF Fuse Carrier 1P 32A 690V 10x38mm, IP20 Certified
Schneider Electric

Schneider Electric DF101 TeSys DF Fuse Carrier 1P 32A 690V 10x38mm, IP20 Certified

  • MPN: DF101
  • PPN: SCH-DF101
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $19.69

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Mexico, Tunisia, United States
    Depth61 mm

    Physical Attributes

    Fuse Size
    10 x 38 mm

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Fuse Type
    0-32 A, aM, 0-32 A, gG
    Utilisation Category
    AC-20B IEC 60947-3, DC-20B IEC 60947-3
    [Ue] Rated Operational Voltage
    690 V AC, 690 V DC
    Short-circuit Withstand
    120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-3
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.00484
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.5 kg CO2 eq., 0.506
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    PPIBS
    Service Catalog Item
    Finished good
    Distribution Carbon Footprint
    0.0167
    Weee Applicability
    Finished product
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    1919
    China Rohs In Scope
    No
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Compatibility Code
    DF10
    Device Short Name
    DF10
    Fire Resistance
    960 °C IEC 60695-2-1
    Mounting Support
    35 mm symmetrical DIN rail
    Overvoltage Category
    III
    Power Dissipation In W
    3 W maximum power dissipation by fuse
    Product Name
    TeSys DF
    Quantity Per Set
    set of 12
    Range Of Product
    TeSys fuse carriers
    Software Version
    EIME v5.8.1
    Total Lifecycle Carbon Footprint
    1 kg CO2 eq.
    Fuse Type 9 Fuse Type
    gG
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Protecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Energy model used: France
    Energy Model - Use [B6]
    Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Recyclability Potential In %
    94

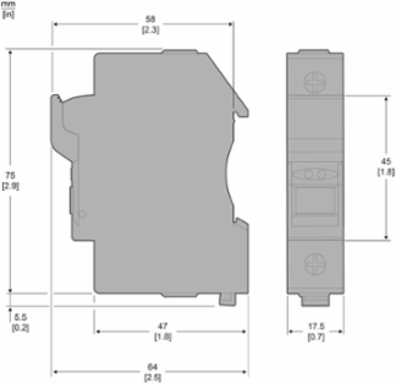

    Width Nominal
    17.5 mm
    [Ith] Conventional Free Air Thermal Current
    32 A 20 °C
    [Uimp] Rated Impulse Withstand Voltage
    6 kV
    Package Weight(Lbs)
    44.000 g
    Warranty (In Months)
    18
    Air Pollution (M3) Distribution [A4]
    2.06
    Air Pollution (M3) End Of Life [C1-c4]
    0.514
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
    0.215
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
    0.0498
    Global Warming (Kg.Equivalent.Co2) Distribution [A4]
    0.0167
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    1.52
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]
    3.36
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
    3.45
    Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
    0.0023
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    7.01
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]
    0.0019
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
    0.0535
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    0.195
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    0.695
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    22.6824
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
    0.217
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    16.1
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    0.0227
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    0.172
    Water Pollution (M3) Total Life Cycle
    185.3211
    Water Pollution (M3) Distribution [A4]
    2.52
    Water Pollution (M3) Operational Energy Use [B6]
    38.2
    Customs Code
    8536509045
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Tightening Torque2.2 N.m PZ2, 2.2 N.m flat Ø 5.5 mm
    Certificate AgencyIEC, UL Recognized, CSA, CCC, EAC, DNV-GL
    Connections - Terminalsscrew clamp terminals 2 1-6 mm²flexible with or without, screw clamp terminals 1 1-16 mm²rigid, screw clamp terminals 2 1-6 mm²rigidscrew clamp terminals 1 1-16 mm²flexible with or without
    Carbon Footprint Of The Distribution Phase [A4]0.0167, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.000134, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.9 kg CO2 eq., 0.925
    Local Publishable Date2026-07-15
    Stocking FlagN
    Device TypeLV equipment - LV fuse - disconnector
    TraceabilityNo
    Average Life Duration15 year(s)
    Manufacturing Carbon Footprint0.506
    Use Carbon Footprint0.925
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Control Typetoggle padlockable
    Energy Efficiency OptimizedFalse
    Mounting Positionvertical +/- 23°)
    Number Of Poles1P
    Poles Description1P
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typefuse carrier
    RangeTeSys
    ReturnabilityYes
    Sustainable PackagingNo
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP2010021EN
    Pep Verification Date2020-10-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Height Nominal79.5 mm
    [Ie] Rated Operational Current32 A 400 V AC
    [Ui] Rated Insulation Voltage690 V AC
    Nbr. Of Units In Pkg.1
    Take-backNo
    Air Pollution (M3) Manufacturing [A1-a3]83.6
    Air Pollution (M3) Operational Energy Use [B6]39.8
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]3.63
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]10.5
    Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]0.506
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]0.925
    Materials For Recycling (Kg) Installation [A5]0.0027
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]0.272
    Non-hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]0.0461
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle23.3824
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]0.217
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]16.1
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]8.0947
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2.35
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]0.695
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]6.31
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]0.0019
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]0.0535
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]0.0227
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2.35
    Water Pollution (M3) Manufacturing [A1-a3]144
    Water Pollution (M3) Installation [A5]0.0221
    Water Pollution (M3) End Of Life [C1-c4]0.579

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Product Compatibility
    DF2CA fuse cartridge, DF2CN fuse cartridge
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    1.452674
    Environmental Disclosure
    ENVPEP2010021EN
    Ip Degree Of Protection
    IP20
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2010021EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Operation-40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C-40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Storage-40-70 °C-40-70 °C
    Eu Rohs DirectiveCompliant
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2020-10-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    fuse carrier
    Range Of ProductTeSys fuse carriers

    ETIM

    ETIM 8
    EC002705
    ETIM 9EC002705

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
