TeSys DF Fuse Carrier 3P 50A 690VAC for 14 x 51mm Fuse
TeSys DF Fuse Carrier 3P 50A 690VAC for 14 x 51mm Fuse
Schneider Electric

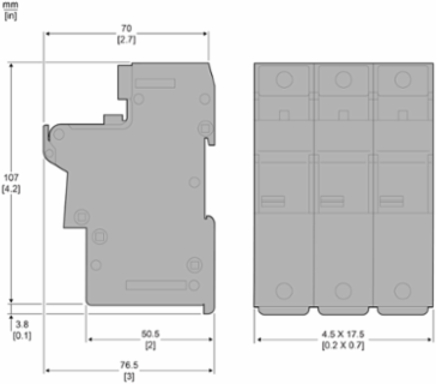

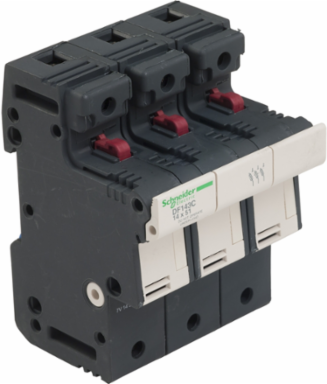

Schneider Electric DF143C TeSys DF Fuse Carrier 3P 50A 690VAC for 14 x 51mm Fuse

  • MPN: DF143C
  • PPN: SCH-DF143C
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $247.65

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links with stricker up to 50A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF14AM* (to be ordered separately). Compact (79mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with striker (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Tunisia, United States
    Depth76.5 mm

    Physical Attributes

    Fuse Size
    14 x 51 mm

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Fuse Type
    0-50 A, aM, 0-50 A, gG
    [Ue] Rated Operational Voltage
    690 V AC, 690 V DC
    Short-circuit Withstand
    120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-380 kA 690 V IEC 60947-3
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.033779166666666666
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    4 kg CO2 eq., 3.5314583333333336
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    PPIBS
    Weee Applicability
    Finished product
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    1919
    China Rohs In Scope
    No
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Compatibility Code
    DF14
    Device Short Name
    DF14
    Fire Resistance
    960 °C IEC 60695-2-1
    Mounting Support
    35 mm symmetrical DIN rail
    Poles Description
    3P
    Product Name
    TeSys DF
    Protective Treatment
    TH
    Range
    TeSys
    Returnability
    Yes
    Sustainable Packaging
    No
    Total Lifecycle Carbon Footprint
    6 kg CO2 eq.
    Fuse Type 9 Fuse Type
    gG
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Protecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime In Kwh
    18.9216
    Energy Model - Installation [A5]
    Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Width Nominal
    79 mm
    [Ipk] Rated Peak Withstand Current
    15 kA with tubular links IEC 60269-1
    [Uimp] Rated Impulse Withstand Voltage
    8 kV
    Package Weight(Lbs)
    357.000 g
    Warranty (In Months)
    18
    Customs Code
    8536509045
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Certificate AgencyIEC, UL Recognized, CSA, EAC
    Connections - Terminalsscrew clamp terminals 2 2.5-10 mm²flexible with or without, screw clamp terminals 1 2.5-25 mm²rigid, screw clamp terminals 2 2.5-10 mm²rigidscrew clamp terminals 1 2.5-25 mm²flexible with or without
    Carbon Footprint Of The Distribution Phase [A4]0.11655208333333333, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0009352083333333334, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 kg CO2 eq., 2.775000000000001
    Local Publishable Date2026-06-27
    Stocking FlagY
    Device TypeLV equipment - LV fuse - disconnector
    TraceabilityNo
    Average Life Duration15 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Control Typetoggle
    Energy Efficiency OptimizedFalse
    Mounting Positionvertical +/- 23°)
    Number Of Poles3P
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typefuse carrier
    Quantity Per Setset of 2
    Range Of ProductTeSys fuse carriers
    Software VersionEIME v5.8.1
    Tightening Torque3.5 N.m
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP2010021EN
    Pep Verification Date2020-10-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Manufacturing [A1-a3]Energy model used: France
    Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Height Nominal110.8 mm
    [Ie] Rated Operational Current50 A
    [Ui] Rated Insulation Voltage690 V AC
    Nbr. Of Units In Pkg.1
    Take-backNo
    Water Pollution (M3) Manufacturing [A1-a3]1005

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Product Compatibility
    DF3EA fuse cartridge striker, DF3EN fuse cartridge strikerDF14AM auxiliary contact block
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    6.457724791666667
    Environmental Disclosure
    ENVPEP2010021EN
    Ip Degree Of Protection
    IP20 conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2020-10-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Operation-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Storage-40-80 °C-40-80 °C
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2010021EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    fuse carrier
    Range Of ProductTeSys fuse carriers

    ETIM

    ETIM 8
    EC002705
    ETIM 9EC002705

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
