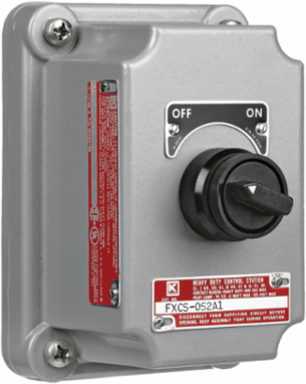

Killark FXCS-0S2A1 Aluminum Factory Sealed 2-Position Selector Switch Cover, NEMA 3, 6.75 in x 6.125 in x 5 in
- MPN: FXCS-0S2A1
- UPC: 783936200699
- PPN: HBL-FXCS-0S2A1
- UNSPSC: 39122216
CAD
$963.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
FXCS Series - Aluminum Maintained Contact 2-Position Selector Switch Cover With Device - Factory Sealed - "Off - On"/Blank Nameplate -1NO/1NC Contact Rating
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Key Specifications
- Number of Poles
- 1
- Special Features
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
- Country of Origin
- United States
- Color
- Black
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 6.75 in
- Width
- 6.125 in
- Actuator
- 2 Position Selector Switch
- Application
- SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
- Nema Rating
- 3
- Type
- Aluminum Factory Sealed Cover With 2-Position Selector Switch
- Description - Invoice
- CVR W/ DEVICE 2POS STAND
- Harmonization Code
- 8536509999
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Factory Sealed
- Factory Sealed
- UL File Number
- E53360, E12379
- Series
- FXCS Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Size6.75 in x 6.125 in x 5 in
ARRA CompliantContact Manufacturer
Back Box TypeFXB
Dimensions6.75 in x 6.125 in x 5 in
Height5 in
Weight3.18 lb.
ActionMaintained
Amperage Rating10 A
Frequency Rating50/60 Hz
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714, LR11712
Gross Weight with Packaging3.18
MaterialCopper-free aluminum
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936200699
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
