Schneider Electric TMH2GDB Modicon M221 Graphic Display Unit, 240 x 160 Pixels, IP65 Rated
- MPN: TMH2GDB
- PPN: SCH-TMH2GDB
CAD
$237.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

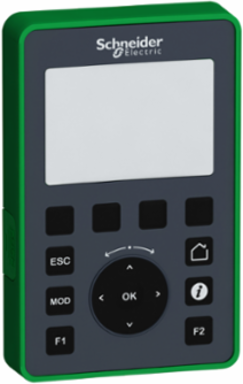

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This graphic display unit features a backlit colour STN LCD display. The display supports 240 x 160 pixels of resolution with monochrome display colour. The unit is equipped with RJ45 for communication and power supply. The keypad contains 4 configurable keys and 6 keys for navigation. It is an IP20 and IP65 rated product. Its dimensions are 80mm (Width) x 63mm (Depth) x 126mm (Height). It weighs 0.17kg. This product is certified by CE and CULus. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This display is compatible with Modicon M221 logic controller. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, Indonesia, United States |
|---|
| Depth | 63 mm |
|---|
Physical Attributes
| Display Color | monochrome |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Electromagnetic Compatibility | electrostatic discharge - test level: 8 kV (air discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 4 kV (contact discharge) conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m (80 MHz...1 GHz) conforming to IEC 61000-4-3radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m (1.4...2 GHz) conforming to IEC 61000-4-3radiated radio-frequency electromagnetic field immunity test - test level: 1 V/m (2...3 GHz) conforming to IEC 61000-4-3magnetic field at power frequency - test level: 30 A/m (50/60 Hz) conforming to IEC 61000-4-8, electrical fast transient/burst immunity test - test level: 1 kV conforming to IEC 61000-4-4surge immunity test - test level: 0.5 kV (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5conducted RF disturbances - test level: 10 Vrms (0.15...80 MHz) conforming to IEC 61000-4-6disturbing field emission - test level: 10...150 kHz (power lines (DC)) conforming to IEC 55011, disturbing field emission - test level: 120...69 dBµV/m QP (power lines (DC)) conforming to IEC 55011, disturbing field emission - test level: 150...1500 kHz (power lines (DC)) conforming to IEC 55011, disturbing field emission - test level: 1.5...30 kHz (power lines (DC)) conforming to IEC 55011, disturbing field emission - test level: 30...230 MHz class A (10 m) conforming to IEC 55011, disturbing field emission - test level: 230 MHz...1 GHZ class A (10 m) conforming to IEC 55011, disturbing field emission - test level: 79...63 dBμV/m QP (power lines (DC)) conforming to IEC 55011, disturbing field emission - test level: 63 dBμV/m QP (power lines (DC)) conforming to IEC 55011, disturbing field emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011, disturbing field emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.042887, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0069495, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 18 kg CO2 eq., 17.897 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Serviceability | No |
| Manufacturing Carbon Footprint | 35.086 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1409016EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Connector Type | RJ45 communication and power supply |
| Display Resolution | 240 x 160 pixels |
| Environmental Characteristic | corrosive gas free |
| Mounting Location | front cabinet 22 mm holebottom of cabinet 22 mm hole mounting accessory |
| Power Consumption In W | 1 W |
| Product Or Component Type | graphic display |
| Returnability | Yes |
| Software Version | EIME v5.9.3 |
| Total Lifecycle Carbon Footprint | 53 kg CO2 eq. |
| Display Color | monochrome |
| Database Version | 2020-12 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Height Nominal | 126 mm |
| Certificate Agency | cULus |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Total Life Cycle | 4291.7 |
| Air Pollution (M3) Distribution [A4] | 1.8244 |
| Air Pollution (M3) End Of Life [C1-c4] | 2.5502 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 508.09 |
| Global Warming (Kg.Equivalent.Co2) Total Life Cycle | 53.112 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 17.897 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 26.855 |
| Net Use Of Fresh Water (M3) Operational Energy Use [B6] | 64.893 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 6.945 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 842.47 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 312 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 535.48 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 51.522 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 45.453 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 5.5806 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 523.84 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 2.3106 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 49.211 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 45.453 |
| Water Pollution (M3) Manufacturing [A1-a3] | 2154.8 |
| Water Pollution (M3) Installation [A5] | 1.0539 |
| Water Pollution (M3) End Of Life [C1-c4] | 4.1985 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Vibration Resistance | 1.5 mm (f= 3-150 Hz), 2 gn |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.079493 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 35 kg CO2 eq., 35.086 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Use Carbon Footprint | 17.897 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Current Consumption | 40 mA 5 V DC via RJ45 connector |
| Display Type | backlit colour STN LCD |
| Marking | CE |
| Number Of Key | 4 configurable6 for navigation |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon M221 |
| Shock Resistance | 15 gn 11 ms |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP1409016EN |
| Pep Verification Date | 2022-09-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To perform monitoring, commissioning, operating, and maintenance operations for the Modicon M221 Logic Controller range at 0,417W with a 100% use rate during 10 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Recyclability Potential In % | 27 |
| Width Nominal | 80 mm |
| Carbon Footprint (Kg Co2 Eq Total Life Cycle) | 53.112 |
| Package Weight(Lbs) | 326.000 g |
| Warranty (In Months) | 18 |
| Air Pollution (M3) Manufacturing [A1-a3] | 3516.7 |
| Air Pollution (M3) Operational Energy Use [B6] | 770.3 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle | 712.22 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 203.15 |
| Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] | 35.086 |
| Hazardous Waste Disposed Of (Kg) Total Life Cycle | 27.254 |
| Net Use Of Fresh Water (M3) Total Life Cycle | 65.692 |
| Non-hazardous Waste Disposed Of (Kg) Total Life Cycle | 73.677 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 66.729 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 529.42 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle | 893.98 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 357.45 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 6.0672 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 5.5806 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 836.89 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 312 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 2.3106 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 3.7566 |
| Water Pollution (M3) Total Life Cycle | 2905.7 |
| Water Pollution (M3) Distribution [A4] | 7.0527 |
| Water Pollution (M3) Operational Energy Use [B6] | 738.51 |
| Customs Code | 8538908180 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -15-50 °C, -15-50 °C |
|---|---|
| Relative Humidity | 95-95 %, non-condensing transport), 95-95 %, non-condensing storage), 95-95 %, non-condensing operation) |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1409016EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Storage Altitude | 0-2000 m |
| Pep Verification Date | 2022-09-01 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 53.112 |
| Environmental Disclosure | ENVPEP1409016EN |
| Ip Degree Of Protection | IP65 front face:IP20 back part: |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1409016EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Product Or Component Type | graphic display |
|---|
| Range Of Product | Modicon M221 |
|---|
ETIM
| ETIM 8 | EC001412 |
|---|
| ETIM 9 | EC001412 |
|---|
