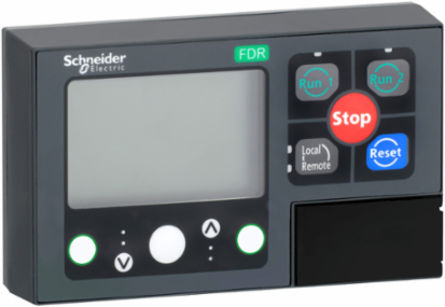

Schneider Electric LTMCUF TeSys T Operator Control Unit with LCD Display, IP54, FDR Service
- MPN: LTMCUF
- PPN: SCH-LTMCUF
CAD
$668.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys T Operator Control Unit with LCD Display, IP54, FDR Service
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United States
Depth50 mm
Complementary Attributes
- Maximum Supply Current
- 140 mA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4
- Certificate Agency
- CSA, EAC, NOM, CE, UL, C-tick
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.8 kg CO2 eq., 0.8389381952744047
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 7 kg CO2 eq., 7.3665369709823905
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503009_V1
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2426
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- LTMCUF
- Device Connection
- connection to a LTM R controller, RJ45 rearconnection to a PC, RJ45 front
- Display Type
- Backlit LCD
- Fire Resistance
- 650 °C EN/IEC 60947-1
- Function Available
- FDR (fast device replacement)
- Mounting Mode
- flush-mounted
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC 12 humidity cycles 55 °C EN/IEC 60068-2-30
- Returnability
- Yes
- Supply
- via the controller
- Total Lifecycle Carbon Footprint
- 18 kg CO2 eq.
- Pep Code
- ENVPEP2503009EN
- Pep Verification Date
- 2026-08-03
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity origin
- Energy Model - End Of Life [C1-c4]
- Electricity origin
- Height Nominal
- 70 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 268.000 g
- Take-back
- No
- Customs Code
- 9030333800
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessshocks15 Gn for 11 ms EN/IEC 60068-2-27, vibrations4 Gn, 5...300 Hz EN/IEC 60068-2-6
Carbon Footprint Of The Distribution Phase [A4]0.15943080339159685, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.017921104470689994, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]9 kg CO2 eq., 9.261890479626357
Local Publishable Date2026-06-27
Stocking FlagN
Weee ApplicabilityFinished product
Weee Product Category2
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Control Button Type10 push-button
Device Short NameLTMCUF
Energy Efficiency OptimizedFalse
Flame RetardanceV2 conforming to UL 94
Local Signalling4 LEDs
Power Dissipation1 W
Product Or Component Typeoperator control unit
RangeTeSys
Software Versionv6.2.5
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2025-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.An Operator Control Unit (HMI) to configure, monitor, and control the connected load.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity origin
Recyclability Potential In %18
Width Nominal117 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Silicon Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Environmental Disclosure
- ENVPEP2503009EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2503009EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
Carbon Footprint17.64471755374544
Circularity ProfileENVEOLI2503009_V1
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP54 EN/IEC 60947-4-1 front)IP20 EN/IEC 60947-4-1 rear)
Packaging Without Single Use PlasticYes
Relative Humidity15-95 %
Pep Verification Date2026-08-03
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- operator control unit
ETIM
- ETIM 8
- EC002614
ETIM 9EC002614
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
