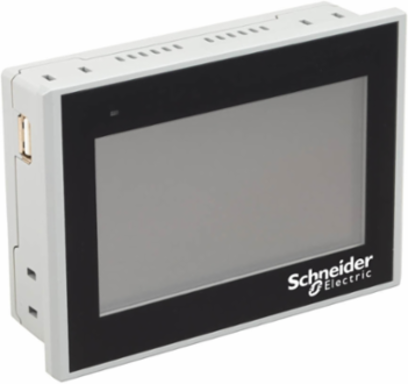

Schneider Electric METSEHDPM6HMI4 PowerLogic HDPM6000 Color Touchscreen HMI Display 4.3 inch
- MPN: METSEHDPM6HMI4
- PPN: SCH-METSEHDPM6HMI4
CAD
$1416.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The multi-circuit PowerLogic HDPM6000 series propose a monitor to visualise measured parameter of multiple head units. The interface can display mains data (volt, current, energy), quality (power, harmonic distortions), harmonics or individual branches. Configuration of the display can be password protected. The menu will help you configure your environment (device, panel) and input/outputs modues. Include a SD card port, 1 Ethernet bus, 2 USB (host+device), 1 serial bus. The viewable area consist of a color TFT LCD, 4.3inches, 480 pixels by 272 pixels. The device support and display data from 1 to 4 head unit. The display need to be supplied with a 24VDC isolated power, that can provide at least 420mA. The dimensions are 127.7mm in width, 90mm in height, 36.7mm in depth for a net weight of 250g. The recommanded enclosure cut-out should be 119.3mm x 81.3mm. Ingress Protection IP65 rating, waterproof, on front. The box includes 4 mounting clip screws to be front-mounted to a panel. Recommanded torque is 0.39Nm plus or minus 0.1Nm, screws need to be tightened evenly, not one by one.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, United States
Physical Attributes
- Display Size
- 4.3 inch
- Projecting Depth
- 3.9 mm
Embedding Depth32.8 mm
Display Color65536 colours
Important Information Attributes
- Connector Type
- RS232, RS422, RS485, RJ45, USB
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, PLSED310185EN
- Local Publishable Date
- 2025-07-15
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Application
- human-machine dialogue application
- Display Type
- colour touchscreen
- Local Signalling
- operating status (RUN) LED Blue)
- Mounting Mode
- panel mounting
- Power Consumption In W
- 6 W
- Product Or Component Type
- display
- Returnability
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 89.7 mm
- [Us] Rated Supply Voltage
- 24 V DC
- Package Weight(Lbs)
- 500.0 g
- Warranty (In Months)
- 18
Information Displayedpower factor, active power, current, voltage, harmonic distortion
Local Data StatusPublishable
Return IndicatorN
Stock Policy1
ServiceabilityYes
Field Service DivisionDPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2105
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Control Typetouch screen1 x button
Display Resolution480 x 272 pixels
Energy Efficiency OptimizedFalse
Memory Capacity128 MB
Mounting Supportenclosure
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePowerLogic
Sustainable PackagingNo
Display Color65536 colours
Width Nominal127.7 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109170
Environment Attributes Main
- Ambient Air Temperature For Storage
- -20-60 °C, -20-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- 0-50 °C
- Ip Degree Of Protection
- IP65
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 10-90 % 40-40 °C
Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- display
ETIM
- ETIM 8
- EC000783
ETIM 9EC000783
