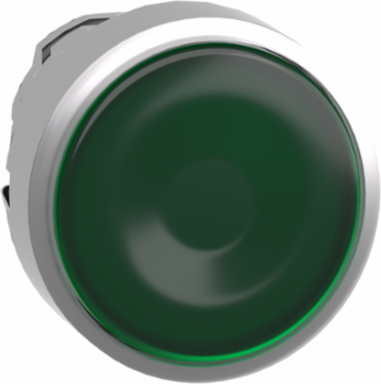

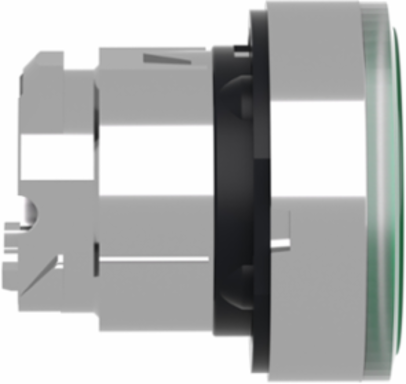

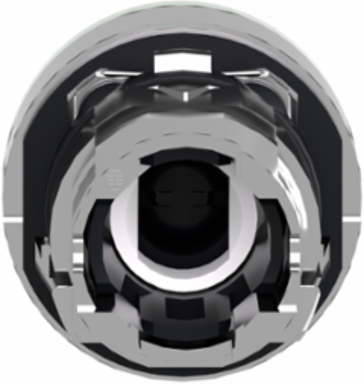

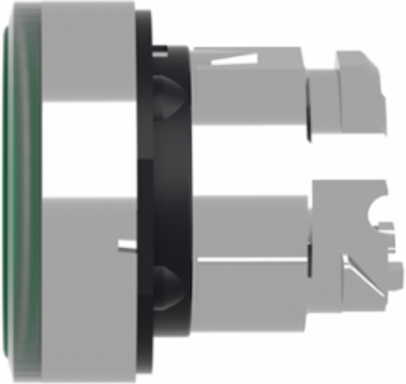

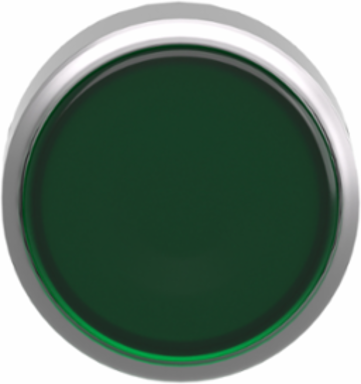

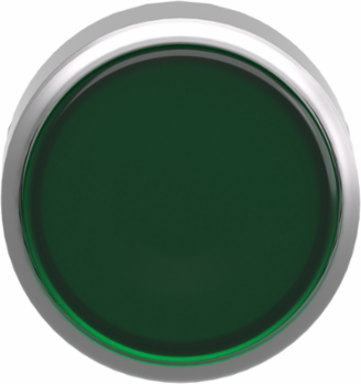

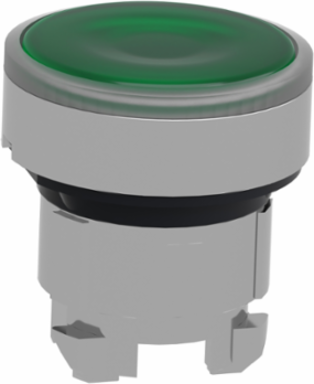

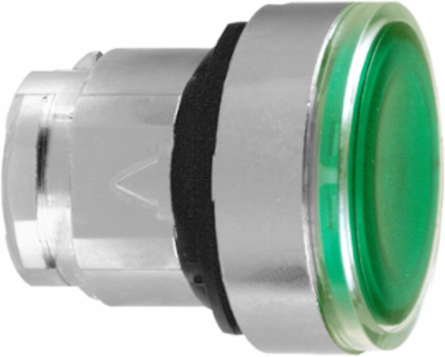

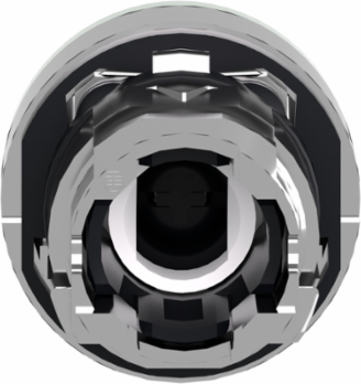

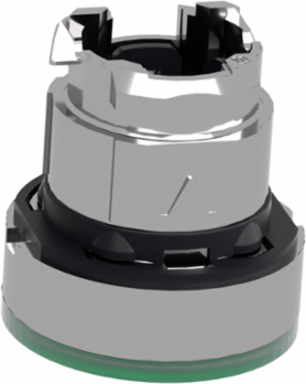

Schneider Electric ZB4BH033 Harmony XB4 Illuminated Push Button Head, 22mm, Green Flush, IP66

MPN: ZB4BH033
PPN: SCH-ZB4BH033
UNSPSC: 39122216

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$60.14

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB4, illuminated flush green button head for universal LED operates with a latched push-push mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.

Features

This model features a maintained "push-push" (latching) mechanism, meaning it clicks into place on the first press and stays there until pressed a second time. This eliminates the need for complex seal-in relay logic circuits in your control panel when you need to keep a machine or light permanently active.
The vibrant green flush lens is completely compatible with Schneider s universal LED blocks, delivering improved color intensity and crisp light output even under harsh overhead factory lighting. This high-visibility signaling provides immediate status feedback from a distance, drastically reducing operator errors and boosting shop-floor safety.
Built with a rugged chromium-plated metal bezel, this heavy-duty head carries an IP66, NEMA 4X, and NEMA 13 rating to easily withstand high-pressure washdowns up to 1,015 psi at 55 C. It functions flawlessly in temperatures ranging from -40 C to 70 C, ensuring total reliability in grit-heavy, grease-soaked, or extreme industrial environments.
Featuring an ingenious snap-fit alignment system, this head securely locks onto its mounting collar and corresponding electrical contact blocks with a single tightening screw. This eliminates the installation frustration of multi-piece components, allowing fast panel assembly or on-the-fly troubleshooting without specialized mechanical tools.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia

Weight	27 g

Physical Attributes

Cad Overall Depth	30 mm
Cad Overall Width	29 mm

Cad Overall Height	29 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	1, no
Mounting Diameter	22.5 mm, 22.5 mm
Cap Operator Or Lens Color	green
Carbon Footprint Of The Distribution Phase A4	0.0043189474, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0039694737, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-08-10
Weee Applicability	Component
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308035EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	21 %
Bezel Material	chromium plated metal
Device Short Name	ZB4
Gcr Bridge	ZB4BHCUST02
Head Type	standard
Main Group	illum push-button
Mechanical Durability	500000 cycles
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	Yes
Type Of Operator	push-push
Operator Profile 1 Operator Profile	flush
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Composition Code	M5 2 single front mounting integral LEDM6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED
Operator Profile	green flush, unmarked, flush
Certificate Agency	CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.0449815789
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.2 kg CO2 eq., 0.2032026316
Local Data Status	Publishable
Return Indicator	Y
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	14 %
Compatibility Code	ZB4
Electrical Shock Protection Class	class I conforming to IEC 60536
Group Of Product	flush push-push illum LED
Important Message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Marking	unmarked
Overvoltage Category	class I conforming to IEC 60536
Product Or Component Type	head for illuminated push-button
Range Of Product	Harmony XB4
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.3 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Database Version	2022-01
Cap/Operator Or Lens Colour	green
Customs Code	8538908180
Functional Unit Description	Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional Unit Unit	Unit
Recyclability Potential In %	84

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP67, IP69, IP69K
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2308035EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	UL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level	21 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.2564726316
Environmental Disclosure	ENVPEP2308035EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	universal LED
Pep Code	ENVPEP2308035EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
