Schneider Electric ZB4BL7341 Harmony XB4 Double Head Push Button 22mm, IP66/IP67/IP69K
Schneider Electric ZB4BL7341 Harmony XB4 Double Head Push Button 22mm, IP66/IP67/IP69K
- MPN: ZB4BL7341
- PPN: SCH-ZB4BL7341
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$49.20/ EA
Description

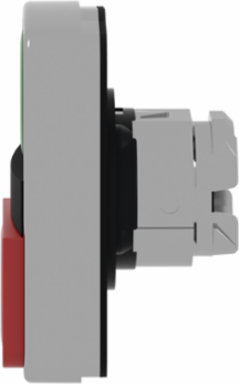

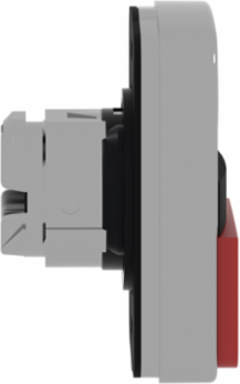

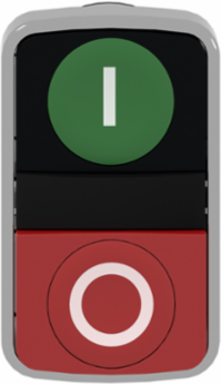

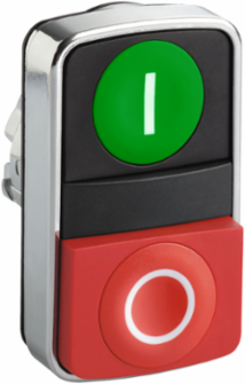

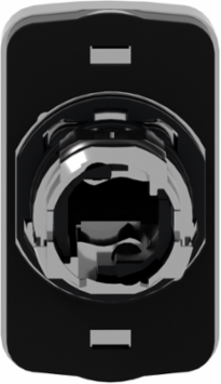

This Harmony XB4, double head has 1 red and 1 green button, operates with a spring return mechanism. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. it is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Specifications
Environment
- Product Certifications
- GL || CSA || DNV || UL listed || LROS (Lloyds register of shipping) || BV
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP69 IEC 60529 || IP66 IEC 60529 || IP69K
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsIEC 60947-5-4 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass I IEC 60536
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
- Net Weight
- 0.056 kg
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Mechanical Durability
- 1000000 cycles
Colour Of Markingwhite marking when green, red or black caps || black marking when white caps
Device Presentationbasic element
Operator Profilegreen flush, I white) || red projecting, O white)
Specifications
- Range Of Product
- Harmony XB4
- Type Of Operator
- spring return
- Product Or Component Type
- head for double-headed push-button
- Operator Profile
- 1 flush - 1 projecting push-buttons
- Sale Per Indivisible Quantity
- 1
- Device Short Name
- ZB4
Mounting Diameter22 mm
Operators Descriptiongreen ''I'' - red ''O''
Shape Of Signaling Unit Headrectangular
Head Typestandard
Bezel Materialchromium plated metal
