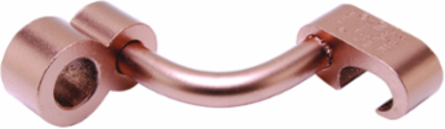

Burndy YGLR34C58 Copper Compression Connector for 5/8 Inch Ground Rod, 250-500 kcmil, UL Listed
- MPN: YGLR34C58
- UPC: 781810220849
- PPN: BUR-279167
CAD
$287.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Connector, Ground Rod to Grid, 250 kcmil - 500 kcmil,5/8" Ground Rod.
Documentation & Downloads
Specifications
Additional
- Conductor Size Range
- 250 kcmil-500 kcmil

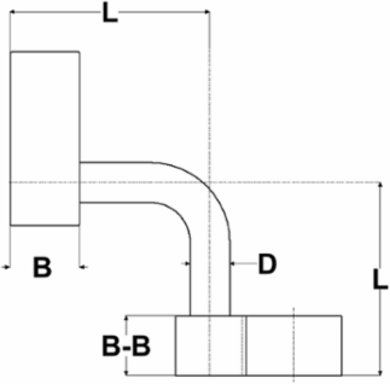

- Length Overall
- 2.53 in
- BB Length
- 0.88 in
- Material
- Copper
- Prefilled Oxide Inhibitor
- Yes
- UL Listed
- Yes
- RoHS Compliance
- CM Compliant
Rod Size5/8 in
B Length0.75 in
D Dimension0.31 in
Oxide Inhibitor TypePenetrox E
Plating TypeUnplated
CSA CertifiedYes
Industry StandardsDirect Burial, UL467, IEEE 837
