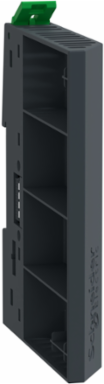

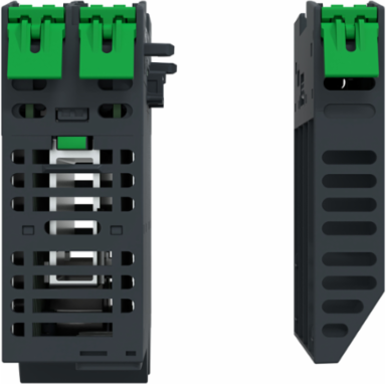

Schneider Electric NTSXMP0000H Spare Cluster Termination, Hardened, Modicon Edge I/O NTS
- MPN: NTSXMP0000H
- PPN: SCH-NTSXMP0000H
CAD
$66.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This cluster termination is a spare part of the Modicon Edge I/O NTS range. The Cluster Termination must be used on the rightmost position of a Modicon Edge I/O NTS cluster. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20. It is compatible with discrete, analog input, Counting, Field device master, Passive, and Motion expert modules. It is sold individually per pack. It installs on the most right module of a cluster, on DIN Rail. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Physical Attributes
- Color
- Gray
Important Information Attributes
- Marking
- CE, UKCA, cULus, RCM
- Carbon Footprint Of The Distribution Phase [A4]
- 0.06066948821973888, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0002865417566717571, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0 kg CO2 eq., 0.00008439245976720958
- Local Publishable Date
- 2026-01-12
- Pre Comm Date
- 2024-12-19
- Stocking Flag
- N
- Device Type
- Automation - Distributed inputs/ouputs
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Product Or Component Type
- cluster termination
- Quantity Per Set
- set of 1
- Returnability
- Yes
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 0.5 kg CO2 eq.
- Pep Code
- ENVPEP2409006EN
- Pep Verification Date
- 2024-11-25
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Width Nominal
- 15 mm
- Accessory / Separate Part Destination
- cluster
- Accessory / Separate Part Designation
- cluster termination
- Package Weight(Lbs)
- 63.503 g
- Warranty (In Months)
- 18
Certificate AgencyCE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.1010600016193517
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.3154829946236522
Local Data StatusPublishable
Pre Comm Announcement Date2024-12-19
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2409006EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2439
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentconformal coating
Range Of ProductModicon Edge I/O NTS
Shock Resistance15 g 11 ms with and without accessory)
Sustainable PackagingYes
Vibration Resistance1 g without accessory2 g with accessory
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo support and terminate a cluster of I/O modules during 20 years with a 100% use rate. To support and terminate a cluster of I/O modules during 20 years with a 100% use rate.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal100 mm
Accessory / Separate Part Categoryconnection accessories
Accessory / Separate Part Typecluster termination
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C-40-70 °C
- Circularity Profile
- ENVEOLI2409006EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m) without derating2000 m...5000 m with derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2409006EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint0.47758341867918175
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2409006EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product CompatibilityNTSN.....
Relative Humidity5-95 % without condensation
Pep Verification Date2024-11-25
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- cluster termination
Range Of ProductModicon Edge I/O NTS
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
