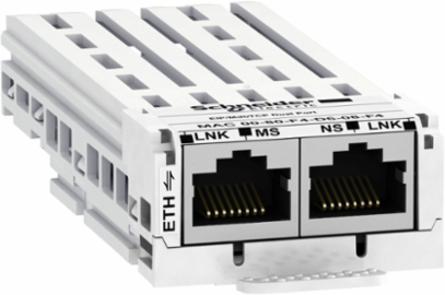

Ethernet/IP Modbus TCP Communication Module, 10/100Mbps, 2 RJ45 Connectors
Schneider Electric

Schneider Electric VW3A3720 Ethernet/IP Modbus TCP Communication Module, 10/100Mbps, 2 RJ45 Connectors

  • MPN: VW3A3720
  • PPN: SCH-VW3A3720
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $441.74

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Ethernet/IP, ModbusTCP communication module enables integration of your drive in your process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600 and Altivar process Modular. It has 2 x RJ45 connector.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia, Singapore, United States

    Communications & Management Attributes

    Communication Port Protocol
    Modbus TCP, EtherNet/IP
    Communication Network Type
    IPv6 (internet protocol)
    Communication ServiceSNMP agent Ethernet IP, Modbus TCP server Ethernet IP/Modbus TCP, Ethernet/IP adapter Ethernet IP, RSTP support Ethernet IP, FTP Ethernet IP, ODVA AC drive and CiA 402 profile Ethernet IP/Modbus TCP, auto-MDIX Ethernet IP/Modbus TCP, 32 parameters IN - 32 parameters OUT implicit messaging Ethernet IP/Modbus TCP, FDR Ethernet IP/Modbus TCP

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, SI
    Bus Profile
    CIP AC Drive, CiA 402
    Web Services
    save/restore drive configuration, drive setting and diagnostic, energy monitoring, widgets (ID, control, data table, diagnostic, charts), upgrade drive firmware, customizable home page, drive monitor, pump function setting and monitoring, Ethernet setting and diagnostic
    Carbon Footprint Of The Distribution Phase [A4]
    0.019262, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0054001, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    0 kg CO2 eq., 0.00059042
    Local Publishable Date
    2026-03-26
    Future Imap
    297.95
    Stocking Flag
    Y
    Device Type
    Variable speed drive - VSD option & accessory
    Traceability
    No
    Weee Applicability
    Component
    Weee Exclusion Rationale
    Component not in scope – non independent function
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1929
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Advanced
    Market Segmentation
    Industrial
    Electrical Connection
    2 connectors RJ45, Ethernet IP/Modbus TCP
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Altivar
    Software Version
    EIME v5.8.1
    Time Synchronisation Protocol
    SNTP
    Total Lifecycle Carbon Footprint
    4 kg CO2 eq.
    Web Server
    embedded HTTP server
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To link the Altivar speed variator to the network, with 2 connectors RJ45, Ethernet IP/Modbus TCP during 20 years. The usage profile taken into account is 100% uptime in use phase.
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime, In Kwh
    0.001
    Energy Model - Installation [A5]
    Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; AC; < 1kV; EU-27
    Carbon Footprint (Kg Co2 Eq, Total Life Cycle)
    4.317
    Package Weight(Lbs)
    159.000 g
    Warranty (In Months)
    18
    Air Pollution (M3) Manufacturing [A1-a3]
    415.85
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
    41.826
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
    0.1243
    Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
    4.2243
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    23.749
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    1.5227
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    54.739
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
    56.48
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
    1.7431
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    2.0998
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    53.142
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    1.4907
    Water Pollution (M3) Total Life Cycle
    561.06
    Water Pollution (M3) Distribution [A4]
    3.1676
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Display Type1 LED MS (Module Status), 1 LED NS (Network Status), 1 LED TX/RX (Transmit/Receive port 1), 1 LED TX/RX (Transmit/Receive port 2)
    Certificate AgencyODVA, Achilles level 2
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.067473
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 4.2243
    Local Data StatusPublishable
    Return IndicatorY
    Future Msrp317.55
    Stock Policy1
    ServiceabilityNo
    Manufacturing Carbon Footprint4.2243
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Exchange Modehalf duplex and full duplex
    Product Or Component Typecommunication module
    ReturnabilityYes
    Sustainable PackagingNo
    Topologydaisy chain
    Transmission Rate10/100 Mbps
    Pep CodeENVPEP2010006EN
    Pep Verification Date2020-12-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime, In Y20
    Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
    Energy Model - Use [B6]Electricity Mix; AC; < 1kV; EU-27
    Recyclability Potential, In %13
    Nbr. Of Units In Pkg.1
    Take-backNo
    Air Pollution (M3) Total Life Cycle418.07
    Air Pollution (M3) End Of Life [C1-c4]1.0928
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]41.356
    Global Warming (Kg.Equivalent.Co2) Total Life Cycle4.317
    Hazardous Waste Disposed Of (Kg) Total Life Cycle23.904
    Non-hazardous Waste Disposed Of (Kg) Total Life Cycle1.5352
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle55.242
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle56.985
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]0.1507
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]1.7414
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]2.0998
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]52.639
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1.489
    Water Pollution (M3) Manufacturing [A1-a3]554.36
    Water Pollution (M3) End Of Life [C1-c4]2.7058

    Environment Attributes Main

    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    4.317
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Without Single Use Plastic
    No
    Pep Code
    ENVPEP2010006EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP2010006EN
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2020-12-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    communication module
    Range Of ProductAltivar

    ETIM

    ETIM 8
    EC002025
    ETIM 9EC002025
