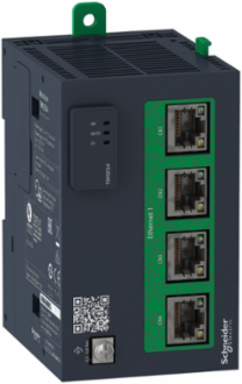

Smart Communication Module for Modicon M262, 4 RJ45, Ethernet/IP, IP20
Schneider Electric

Schneider Electric TMSES4 Smart Communication Module for Modicon M262, 4 RJ45, Ethernet/IP, IP20

  • MPN: TMSES4
  • PPN: SCH-TMSES4

CAD

$703.17

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Smart Communication Module for Modicon M262, 4 RJ45, Ethernet/IP, IP20

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, Indonesia, Singapore, United States
Depth88.3 mm

Communications & Management Attributes

Communication Service
Ethernet/IP adapter, DHCP client, IEC VAR ACCESS, Modbus TCP server, SNMP client/server, FTP client/server, SQL client, send and receive email from the controller based on TCP/UDP library, web server, OPC UA server, DNS client, MQTT, SNTP, TLS
Communication Port ProtocolEthernet

Important Information Attributes

Persona Type Ids
EU, OM, OM8
Local Signalling
1 LED (green) for PWR, 1 LED for MOD STS, 1 LED for ETH
Number Of Module Per Plc
1 maximum per logic controller, 1 maximum per motion controller
Resistance To Fast Transients
2 kV IEC 61000-4-4 power lines)1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
Vibration Resistance
1 gn 8.4-200 Hz panel mounting3.5 mm 2-8.4 Hz symmetrical rail1 gn 8.4-200 Hz symmetrical rail, 3.5 mm 2-8.4 Hz panel mounting
Carbon Footprint Of The Distribution Phase [A4]
0.065995, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0 kg CO2 eq., 0.0057558
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
206 kg CO2 eq., 206.01
Local Publishable Date
2026-01-12
Stocking Flag
Y
Device Type
PLC System - PLC Component
Traceability
Yes
Manufacturing Carbon Footprint
10.285
End Of Life Carbon Footprint
0.4371
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
5
Without Single Use Plastic
Yes
Tier Id
1
Function Option Id
ADVANCED
Market Segmentation Id
INDUSTRIAL
Product Kit Identifier
N
Electromagnetic Emission
conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011radiated emissions 40 dBµV/m A30-230 kHz IEC 55011conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011radiated emissions 47 dBµV/m A230-1000 MHz IEC 55011
Product Availability
Non-Stock - Not normally stocked in distribution facility
Range Of Product
Modicon M262
Resistance To Electrostatic Discharge
4 kV on contact IEC 61000-4-28 kV on air IEC 61000-4-2
Shock Resistance
15 gn 11 ms
Sustainable Packaging
Yes
Web Services
web server
Pep Code
ENVPEP1904004EN
Pep Verification Date
2019-04-01
Type Of Verification For The Pep
Independent external review
Functional-unit Description
For adding an Ethernet network Equipped with 4x RJ45 switched ports (EtherNet/IP Slave and Modbus TCP) to the M262 Controllers, at 4.8W 100% of the time for 10 years
Functional-unit Unit
unité (unit)
Energy Model - Manufacturing [A1-a3]
Energy model used: Indonesia
Energy Model - Use [B6]
Electricity mix; AC; < 1kV; EU-27
Recyclability Potential In %
23
Width Nominal
60 mm
Nbr. Of Units In Pkg.
1
Take-back
No
Air Pollution (M3) Total Life Cycle
9955
Air Pollution (M3) Distribution [A4]
2.8074
Air Pollution (M3) End Of Life [C1-c4]
7.3028
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
98.33
Global Warming (Kg.Equivalent.Co2) Total Life Cycle
216.81
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
206.01
Hazardous Waste Disposed Of (Kg) Total Life Cycle
9.3363
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
0.1074
Materials For Energy Recovery (Kg) Total Life Cycle
0.1226
Materials For Recycling (Kg) Total Life Cycle
0.229
Net Use Of Fresh Water (M3) Operational Energy Use [B6]
746.97
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
4.24
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
3730.1
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
3591.3
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
4259
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
4114.5
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
528.86
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
523.2
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
4.9096
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
131.87
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
1.0085
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
1.9232
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
3.7328
Water Pollution (M3) Total Life Cycle
9597.6
Water Pollution (M3) Distribution [A4]
10.853
Water Pollution (M3) End Of Life [C1-c4]
17.721
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-4, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Servicesself speed adaptation (10-100-1000 Mbits), half or full duplex, autocrossing (MDIO)
Certificate AgencyCE, cULus, RCM, EAC (pending)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4371, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 10.285
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Use Carbon Footprint206.01
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1904004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1936
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Current Consumption200 mA 24 V
Port Ethernet10/100/1000 BASE-TX - 4 RJ45
Product Or Component Typesmart communication module
Resistance To Electromagnetic Fields10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3
ReturnabilityNo
Software VersionEIME v5.8.1
Total Lifecycle Carbon Footprint217 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Height Nominal100 mm
Carbon Footprint (Kg Co2 Eq Total Life Cycle)216.81
Package Weight(Lbs)522.0 g
Warranty (In Months)18
Air Pollution (M3) Manufacturing [A1-a3]1077.9
Air Pollution (M3) Operational Energy Use [B6]8866.8
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle2438.6
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2338.4
Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]10.285
Global Warming (Kg.Equivalent.Co2) End Of Life [C1-c4]0.4371
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]8.2227
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]1.0062
Materials For Energy Recovery (Kg) End Of Life [C1-c4]0.1226
Net Use Of Fresh Water (M3) Total Life Cycle747.09
Non-hazardous Waste Disposed Of (Kg) Total Life Cycle772.35
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]768.1
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]136.78
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]1.0085
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]142.44
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]1.0094
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]5.656
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle4.9096
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle3725.2
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]3591.3
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle1.9232
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle526.94
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]523.2
Water Pollution (M3) Manufacturing [A1-a3]1067.3
Water Pollution (M3) Operational Energy Use [B6]8500.9
Customs Code8517620090

Environment Attributes Main

Ambient Air Temperature For Operation
-20-60 °C horizontal installation, -20-60 °C horizontal installation, -20-50 °C vertical installation, -20-50 °C vertical installation-20-60 °C horizontal installation, -20-60 °C horizontal installation, -20-50 °C vertical installation
Relative Humidity
10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Circularity Profile
ENVEOLI1904004EN
Eu Rohs Directive
Compliant By Exemption
Operating Altitude
0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic
Yes
Storage Altitude
0-3000 m
Pep Verification Date
2019-04-01
Type Of Verification For The Pep
Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint216.81
Environmental DisclosureENVPEP1904004EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1904004EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Product Or Component Type
smart communication module
Range Of ProductModicon M262

ETIM

ETIM 8
EC001423
ETIM 9EC001423
