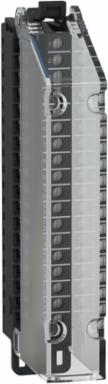

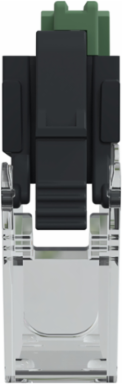

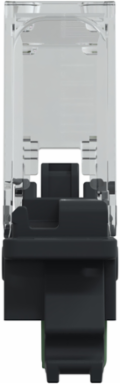

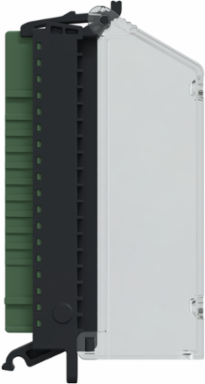

Schneider Electric NTSXTB18001H Screw Terminal Block, 18 Points, 3.81mm Pitch, With Cover, Use on Low Height Module, Hardened, Modicon Edge I/O NTS

MPN: NTSXTB18001H
PPN: SCH-NTSXTB18001H

$57.92

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This screw terminal block is part of the Modicon Edge I/O NTS range. It is a screw terminal block with a plastic cover to use on the 100mm high modules. It has 18 connection points and a 3.81mm Pitch and handles DC voltage. This removable terminal block allows quick and easy disconnection of wiring, minimizes system downtime during maintenance or troubleshooting. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20 and benefits from a Protective coating. It is compatible with discrete I/O and analog input modules. It is sold individually per pack. It connects to the front face of the module. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, Indonesia, Philippines, United States

Physical Attributes

Color	Gray

Important Information Attributes

Certificate Agency	CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.09344613841124484
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.1 kg CO2 eq., 0.12925642764664289
Local Data Status	Publishable
Pre Comm Announcement Date	2024-12-19
Return Indicator	Y
Stock Policy	2
Serviceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Marking	cURus
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	none
Range Of Product	Modicon Edge I/O NTS
Shock Resistance	15 g 11 ms with and without accessory)
Sustainable Packaging	Yes
Vibration Resistance	1 g without accessory2 g with accessory
Database Version	2024-01
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To provide a secure connection for wiring and facilitate the transmission of electrical signals between the Modicon Edge I/O and connected devices during 20 years with a 100% use rate. To provide a secure connection for wiring and facilitate the transmission of electrical signals between the Modicon Edge I/O and connected devices during 20 years with a 100% use rate.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]	Electricity origin
Recyclability Potential In %	62
Width Nominal	14 mm
Accessory / Separate Part Destination	I/O module
Accessory / Separate Part Designation	terminal block for low height I/O module
Package Weight(Lbs)	50.000 g
Warranty (In Months)	18

Carbon Footprint Of The Distribution Phase [A4]	0.01969504131802826, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.00020417636478107934, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0 kg CO2 eq., 0.0019526981675257956
Local Publishable Date	2026-01-12
Pre Comm Date	2024-12-19
Stocking Flag	N
Device Type	Automation - Distributed inputs/ouputs
Traceability	No
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2439
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Connector Type	screw connector
Pin Number	18
Product Or Component Type	terminal block
Quantity Per Set	set of 1
Returnability	Yes
Software Version	v6.2.2
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Pep Code	ENVPEP2409007EN
Pep Verification Date	2024-12-03
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity origin
Energy Model - End Of Life [C1-c4]	Electricity origin
Height Nominal	90 mm
Accessory / Separate Part Category	connection accessories
Accessory / Separate Part Type	terminal block
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Environment Attributes Main

Directives	2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Operation	-40-70 °C-40-70 °C
Environmental Disclosure	ENVPEP2409007EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	NTS low height I/O module
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP2409007EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.24455448190822288
Ambient Air Temperature For Storage	-40-85 °C-40-85 °C
Eu Rohs Directive	Compliant
Operating Altitude	0...6561.68 ft (0...2000 m) without derating2000 m...5000 m with derating
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes
Relative Humidity	5-95 % without condensation
Pep Verification Date	2024-12-03
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
