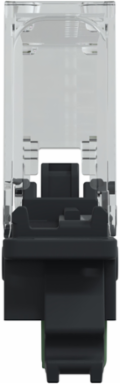

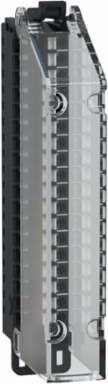

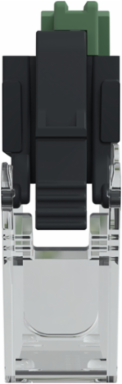

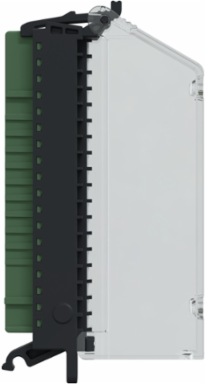

Schneider Electric NTSXTB18201H Spring Terminal Block, 18 Points, 3.81mm Pitch, With Cover, Use on Low Height Module, Hardened, Modicon Edge I/O NTS
- MPN: NTSXTB18201H
- PPN: SCH-NTSXTB18201H
CAD
$43.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This spring terminal block is part of the Modicon Edge I/O NTS range. It is a spring terminal block with a plastic cover to use on the 100mm high modules. It has 18 connection points and a 3.81mm Pitch and handles DC voltage. This removable terminal block allows quick and easy disconnection of wiring, minimizes system downtime during maintenance or troubleshooting. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20 and benefits from a Protective coating. It is compatible with discrete I/O, analog I/O, Counting, Field device master, Passive, and Motion expert modules. It is sold individually per pack. It connects to the front face of the module. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia, Philippines, United States
Physical Attributes
- Color
- Gray
Important Information Attributes
- Certificate Agency
- CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.09110998495096373
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.12602501695547683
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2024-12-19
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Marking
- cURus
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- none
- Range Of Product
- Modicon Edge I/O NTS
- Shock Resistance
- 15 g 11 ms with and without accessory)
- Sustainable Packaging
- Yes
- Vibration Resistance
- 1 g without accessory2 g with accessory
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To provide a secure connection for wiring and facilitate the transmission of electrical signals between the Modicon Edge I/O and connected devices during 20 years with a 100% use rate. To provide a secure connection for wiring and facilitate the transmission of electrical signals between the Modicon Edge I/O and connected devices during 20 years with a 100% use rate.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity origin
- Recyclability Potential In %
- 62
- Width Nominal
- 14 mm
- Accessory / Separate Part Destination
- I/O module
- Accessory / Separate Part Designation
- terminal block for low height I/O module
- Package Weight(Lbs)
- 39.000 g
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]0.019202665285077556, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00019907195566155238, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.0029290472512886936
Local Publishable Date2026-01-12
Pre Comm Date2024-12-19
Stocking FlagN
Device TypeAutomation - Distributed inputs/ouputs
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2439
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Connector Typespring connector
Pin Number18
Product Or Component Typeterminal block
Quantity Per Setset of 1
ReturnabilityYes
Software Versionv6.2.2
Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
Pep CodeENVPEP2409007EN
Pep Verification Date2024-12-03
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity origin
Energy Model - End Of Life [C1-c4]Electricity origin
Height Nominal90 mm
Accessory / Separate Part Categoryconnection accessories
Accessory / Separate Part Typeterminal block
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C-40-70 °C
- Environmental Disclosure
- ENVPEP2409007EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- NTS low height I/O module
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2409007EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.23946578639846836
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Eu Rohs DirectiveCompliant
Operating Altitude0...6561.68 ft (0...2000 m) without derating2000 m...5000 m with derating
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Relative Humidity5-95 % without condensation
Pep Verification Date2024-12-03
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- terminal block
Range Of ProductModicon Edge I/O NTS
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
