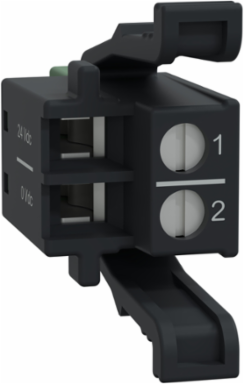

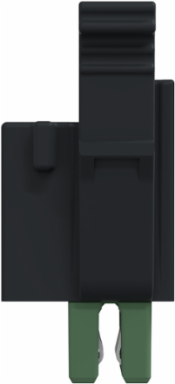

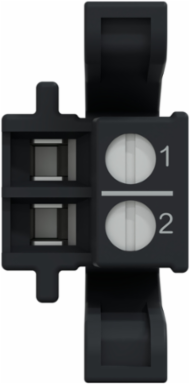

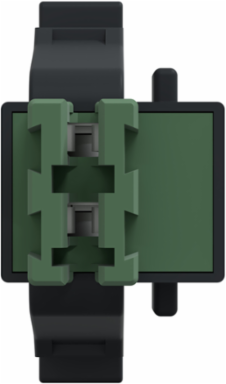

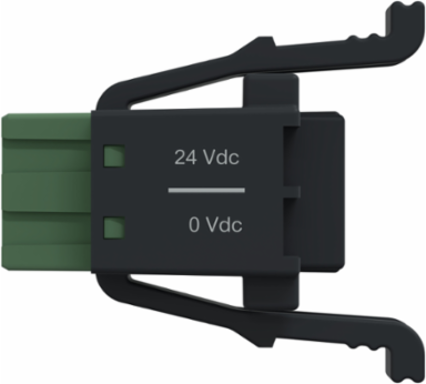

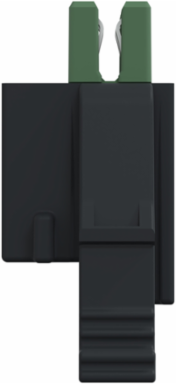

Schneider Electric NTSXTB02030H Screw Terminal Block, 2 Points, 5mm Pitch, Use on Power Supply Module, Hardened, Modicon Edge I/O NTS
- MPN: NTSXTB02030H
- PPN: SCH-NTSXTB02030H
CAD
$13.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This screw terminal block is part of the Modicon Edge I/O NTS range. It is a screw terminal block with a plastic cover to use on power supply modules. It has 2 connection points and a 5mm Pitch and handles DC voltage. This removable terminal block allows quick and easy disconnection of wiring, minimizes system downtime during maintenance or troubleshooting. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20 and benefits from a Protective coating. It is compatible with bus and field power supply modules. It is sold individually per pack. It connects to the front face of the power supply module. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia, Philippines, United States
Physical Attributes
- Color
- Gray
Important Information Attributes
- Certificate Agency
- CE, UKCA, RCM, cURus
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.021025381142530088
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0 kg CO2 eq., 0.029082696220494652
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2024-12-19
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- Not applicable
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2439
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Connector Type
- screw connector
- Pin Number
- 2
- Product Or Component Type
- terminal block
- Quantity Per Set
- set of 1
- Returnability
- Yes
- Software Version
- v6.2.2
- Total Lifecycle Carbon Footprint
- 0.1 kg CO2 eq.
- Pep Code
- ENVPEP2409007EN
- Pep Verification Date
- 2024-12-03
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity origin
- Energy Model - End Of Life [C1-c4]
- Electricity origin
- Height Nominal
- 30 mm
- Accessory / Separate Part Category
- connection accessories
- Accessory / Separate Part Type
- terminal block
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Carbon Footprint Of The Distribution Phase [A4]0.0044313842965563585, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00004593968207574285, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.0029290472512886936
Local Publishable Date2026-01-12
Pre Comm Date2024-12-19
Stocking FlagN
Device TypeAutomation - Distributed inputs/ouputs
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
MarkingcURus
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentnone
Range Of ProductModicon Edge I/O NTS
Shock Resistance15 g 11 ms with and without accessory)
Sustainable PackagingYes
Vibration Resistance1 g without accessory2 g with accessory
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide a secure connection for wiring and facilitate the transmission of electrical signals between the Modicon Edge I/O and connected devices during 20 years with a 100% use rate. To provide a secure connection for wiring and facilitate the transmission of electrical signals between the Modicon Edge I/O and connected devices during 20 years with a 100% use rate.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity origin
Recyclability Potential In %62
Width Nominal14 mm
Accessory / Separate Part Destinationpower supply
Accessory / Separate Part Designationterminal block for power supply module
Package Weight(Lbs)11.000 g
Warranty (In Months)18
Environment Attributes Main
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.057514448592945536
- Ambient Air Temperature For Storage
- -40-85 °C-40-85 °C
- Environmental Disclosure
- ENVPEP2409007EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- NTSPFB1002H module
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2409007EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C-40-70 °C
Circularity ProfileNot applicable
Eu Rohs DirectiveCompliant
Operating Altitude0...6561.68 ft (0...2000 m) without derating2000 m...5000 m with derating
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Relative Humidity5-95 % without condensation
Pep Verification Date2024-12-03
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- terminal block
Range Of ProductModicon Edge I/O NTS
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
