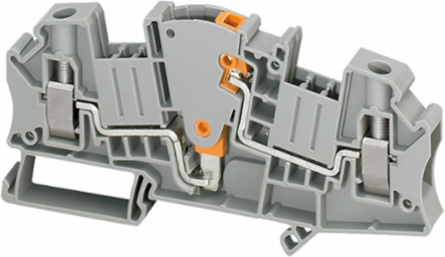

Schneider Electric NSYTRV62TTD Linergy TR Screw Terminal Block, 2 Points, 6 mm2, Clip-on, Grey

MPN: NSYTRV62TTD
PPN: SCH-NSYTRV62TTD

$28.91

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This screw terminal block from Schneider Electric is engineered for efficiency in automation and control applications. The NSYTRV62TTD model features a reliable two-point configuration and accommodates wire sizes of up to 6 mm2, ensuring robust connectivity for various projects. Its clip-on design not only allows for straightforward installation but also facilitates easy maintenance and adjustments, making it a practical choice for professionals seeking dependable solutions in terminal block connectivity. The neutral grey finish adds to its versatility, blending seamlessly into different setups within the industrial environment.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Spain, France, Poland, United States

Physical Attributes

Color	Gray

Wire Stripping Length	10 mm

Complementary Attributes

Line Rated Current	30-30 A EN/IEC 60947-7-1, 30-30 A UL, 30-30 A CSA

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Cable Cross Section	0.2-10 mm², solid0.2-10 mm², flexible without cable end, 0.2-6 mm², flexible with cable end
Dielectric Loss	0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
Surface Resistance	1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
Certificate Agency	UL, CSA
Connections - Terminals	1 x screw terminal upstream, 1 x screw terminal downstream
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.077697187
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.2 kg CO2 eq., 0.170654779
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2518
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Connection Position	inclined
Dielectric Constant	3.7 at 1 MHz
Energy Efficiency Optimized	False
Material	polyamide 6/6: insulating case
Nominal Cross Section	6 mm²
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	terminal block
Range	Linergy
Returnability	No
Sustainable Packaging	Yes
Terminal Block Type	blade disconnect
Total Lifecycle Carbon Footprint	8 kg CO2 eq.
Pep Code	ENVPEP2309018EN
Pep Verification Date	2023-12-03
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal	49.6 mm
Width Nominal	8.2 mm
Halogen-free Status	Halogen free plastic parts product
Package Weight(Lbs)	29.000 g
Take-back	No
Customs Code	8536904000

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Creep Resistance	500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
Resistivity	10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
Tool Type	connection screwdriver, disconnection screwdriver
[Ue] Rated Operational Voltage	500 V EN/IEC 60947-7-1600 V UL, 600 V CSA
Carbon Footprint Of The Distribution Phase [A4]	0.003683356, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.002302045, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	8 kg CO2 eq., 7.619606494
Local Publishable Date	2026-06-27
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	terminal block
Device Short Name	TRV
Dielectric Strength	1000 V IEC 60243-1
Flame Retardance	V0 0.8 mm UL 94
Mounting Mode	clip-on
Number Of Terminals	2
Product Name	Linergy TR
Quantity Per Set	set of 50
Range Of Product	Linergy
Software Version	v5.9.4
Terminal Block Level	1
Tightening Torque	1.5-1.8 N.m
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 21 A, a rated cross-section 2.5 mm², a rated voltage 690 V.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; GE
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	46
Length Total	100.8 mm
Accessory / Separate Part Category	connection accessory
Nbr. Of Units In Pkg.	1
Silicone-free	Yes
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take Back	No
Recycled Metal Content At Cr Level	0 %
Silicon Free	Yes
Environmental Disclosure	ENVPEP2309018EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-03
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Operation	-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
Halogene Performance	Halogen free plastic parts product
Mercury Free	Yes
Carbon Footprint	7.87394386
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	Spacial enclosures
Pep Code	ENVPEP2309018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
