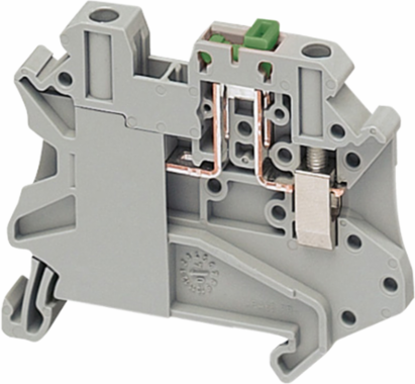

Schneider Electric NSYTRV42SC Linergy TR Terminal Block, 2 Points, 4 mm2, Screw Type, Grey
- MPN: NSYTRV42SC
- PPN: SCH-NSYTRV42SC
CAD
$15.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for use in automation and control applications, the Schneider Electric Linergy TR Terminal Block provides a reliable solution for connecting electrical components. This model features two points and a screw type connection, accommodating wires of up to 4 mm2, making it versatile for various installation needs. With its sleek grey finish, this terminal block not only ensures optimal performance but also fits seamlessly into any panel layout, providing a professional and organized appearance. Ideal for a range of applications, it exemplifies Schneider Electric's commitment to quality and innovation in terminal block design.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany, United States
Physical Attributes
- Color
- Gray
Wire Stripping Length9 mm
Complementary Attributes
- Line Rated Current
- 20-20 A EN/IEC 60947-7-116-16 A CSA, 16-16 A UL
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cable Cross Section
- 0.14-6 mm², flexible without cable end, 0.14-6 mm², solid
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
- Surface Resistance
- 1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
- Certificate Agency
- UL, CSA
- Connections - Terminals
- 1 x screw terminal upstream, 1 x screw terminal downstream
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.034204747, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.075127605
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2518
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Connection Position
- sideways
- Dielectric Constant
- 3.7 at 1 MHz
- Energy Efficiency Optimized
- False
- Material
- polyamide 6/6: insulating case
- Nominal Cross Section
- 4 mm²
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- terminal block
- Range
- Linergy
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Terminal Block Type
- blade disconnect
- Total Lifecycle Carbon Footprint
- 6 kg CO2 eq.
- Pep Code
- ENVPEP2309018EN
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 49.1 mm
- Width Nominal
- 6.2 mm
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
Resistivity10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
Tool Typeconnection screwdriver, disconnection screwdriver
[Ue] Rated Operational Voltage500 V EN/IEC 60947-7-1600 V CSA, 600 V UL
Carbon Footprint Of The Distribution Phase [A4]0.001621529, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.001013433
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]6 kg CO2 eq., 5.932823377
Local Publishable Date2026-06-27
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility Codeterminal block
Device Short NameTRV
Dielectric Strength1000 V IEC 60243-1
Flame RetardanceV0 0.8 mm UL 94
Mounting Modeclip-on
Number Of Terminals2
Product NameLinergy TR
Quantity Per Setset of 50
Range Of ProductLinergy
Software Versionv5.9.4
Terminal Block Level1
Tightening Torque0.6-0.8 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionConnect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 21 A, a rated cross-section 2.5 mm², a rated voltage 690 V.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; GE
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %46
Length Total57.8 mm
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)12.000 g
Take-backNo
Customs Code8531809051
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2309018EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
Carbon Footprint6.044790691
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product CompatibilitySpacial enclosures
Pep CodeENVPEP2309018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- terminal block
Range Of ProductLinergy
ETIM
- ETIM 8
- EC000902
ETIM 9EC000902
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Number Of Measurement Input
- 2
