Linergy TR Push-In Terminal Block, 2 Points, 2.5 mm2, Set of 50
Schneider Electric

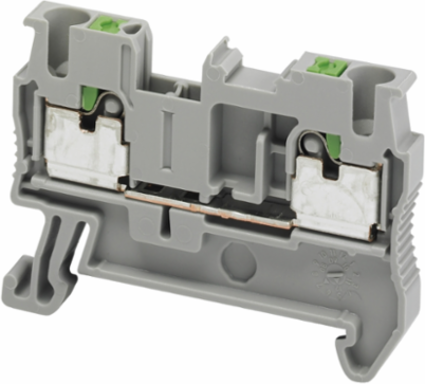

Schneider Electric NSYTRP22 Linergy TR Push-In Terminal Block, 2 Points, 2.5 mm2, Set of 50

  • MPN: NSYTRP22
  • PPN: SCH-NSYTRP22
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $3.60

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (VDE, LR, cURus, IEC-Ex, ATEX, EAC, GL, CSA).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, Germany, France, Mexico, United States

    Physical Attributes

    Color
    Gray
    Wire Stripping Length10 mm

    Complementary Attributes

    Line Rated Current
    24-24 A EN/IEC 60947-7-120-20 A CSA, 20-20 A UL

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Cable Cross Section
    0.2-2.5 mm², solid without cable end0.14-2.5 mm², flexible without cable end0.14-4 mm², solid with cable end, 0.2-2.5 mm², flexible with cable end
    Dielectric Loss
    0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
    Resistivity
    10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
    Certificate Agency
    UL, GL, VDE, CSA
    Connections - Terminals
    1 x push-in upstream, 1 x push-in downstream
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.015931
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0 kg CO2 eq., 0.038461
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Applicability
    Component
    Weee Exclusion Rationale
    Component not in scope – non independent function
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    2518
    China Rohs In Scope
    No
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Compatibility Code
    terminal block
    Device Short Name
    TRP
    Dielectric Strength
    1000 V IEC 60243-1
    Flame Retardance
    V0 0.8 mm UL 94
    Nominal Cross Section
    2.5 mm²
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    terminal block
    Range
    Linergy
    Returnability
    Yes
    Sustainable Packaging
    Yes
    Terminal Block Type
    passthrough
    Total Lifecycle Carbon Footprint
    5 kg CO2 eq.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 19 A, a rated cross-section 2.5 mm2, a rated voltage 550 V, a short-time withstand current 0.3 kA.
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; GE
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %
    33
    Length Total
    48.5 mm
    Accessory / Separate Part Category
    connection accessory
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    Yes
    Warranty (In Months)
    18
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
    4.4787
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
    21.172
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
    1.1719
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    136.02
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    114.1
    Customs Code
    8536904000
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
    Materialpolyamide 6/6: insulating casecopper alloy: connector and screw, copper alloy: commoning linkchromium-nickel steel: spring
    Surface Resistance1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
    [Ue] Rated Operational Voltage800 V EN/IEC 60947-7-1600 V CSA, 600 V UL
    Carbon Footprint Of The Distribution Phase [A4]0.00080887, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.00073026, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]4 kg CO2 eq., 4.4787
    Local Publishable Date2026-06-27
    Stocking FlagN
    Use Carbon Footprint4.4787
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Connection Positiontop
    Dielectric Constant3.7 at 1 MHz
    Energy Efficiency OptimizedFalse
    Mounting Modeclip-on
    Number Of Terminals2
    Product NameLinergy TR
    Quantity Per Setset of 50
    Range Of ProductLinergy
    Software Versionv5.9.4
    Terminal Block Level1
    Tool Typeconnection without tooldisconnection flat screwdriver
    Pep CodeENVPEP2309019EN
    Pep Verification Date2023-12-03
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal36.5 mm
    Width Nominal5.2 mm
    Halogen-free StatusHalogen free plastic parts product
    Package Weight(Lbs)6.000 g
    Take-backNo
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]4.4727
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]114.1
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]48.232
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]6.6592
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]21.911
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]21.911

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Take Back
    No
    Halogene Performance
    Halogen free plastic parts product
    Toxic Heavy Metal Free
    Yes
    Silicon Free
    Yes
    Environmental Disclosure
    ENVPEP2309019EN
    Halogen Content Performance
    Halogen free plastic parts product
    Packaging Without Single Use Plastic
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2309019EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
