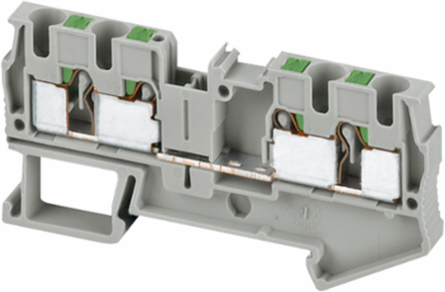

Schneider Electric NSYTRP44 Linergy TR Terminal Block, Push-In, 4 Points, 4mm², Set of 50
- MPN: NSYTRP44
- PPN: SCH-NSYTRP44
CAD
$6.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Linergy TR Terminal Block from Schneider Electric offers reliable connectivity and ease of installation with its push-in design. Ideal for various automation and control applications, this terminal block accommodates 4 points and is rated for 4mm² wires, ensuring solid connections in compact and intricate setups. Designed as a set of 50, these terminals are perfect for projects that require a high quantity of connections, making them a practical choice for panel builders and electrical engineers looking to streamline their wiring solutions. With a focus on efficiency and durability, this terminal block contributes to a well-organized and dependable electrical system.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 32 A EN/IEC 60947-7-1, 30 A CSA, 30 A cURus
- Ambient Air Temperature For Operation
- -40 to 130 °C IEC 60216-1, VDE 0304-T21
- Number of Terminals
- 4
- Ambient Temperature Range
- -40 to 130 °C
- Width
- 6.2 mm (0.24 in)
- Wire Stripping Length
- 12 mm (0.47 in)
- Terminal Block Type
- Passthrough
- Connection Position
- Top
- Wire Size
- 4 mm²
- Product Certifications
- LR, IECEx, cURus, GL, CSA, EAC, ATEX
- REACH Compliance
- Free of Substances of Very High Concern above threshold
- Color
- Grey
Rated Operational Voltage800 V EN/IEC 60947-7-1, 600 V CSA, 600 V cURus
Dielectric Strength1000 V IEC 60243-1
Number of Measurement Inputs2
Length77 mm (3.03 in)
Height36.5 mm (1.44 in)
Connection TypePush-in, 2 x downstream, 2 x upstream
Mounting ModeClip-on
Nominal Cross Section4 mm²
MaterialPolyamide 6/6 insulating case, Copper alloy connector and screw and commoning link, Chromium-nickel steel spring
RoHS ComplianceYes (including EU RoHS, China RoHS)
Flame RetardanceV0 UL 94 0.8 mm
Country of OriginChina
