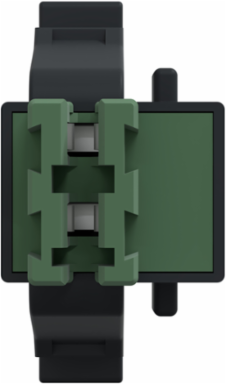

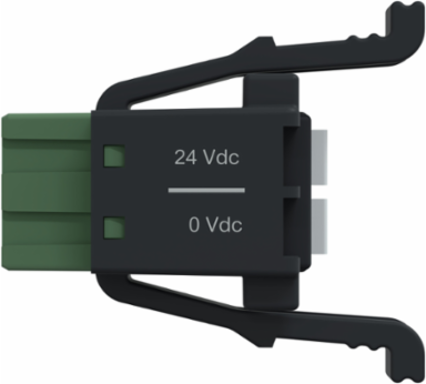

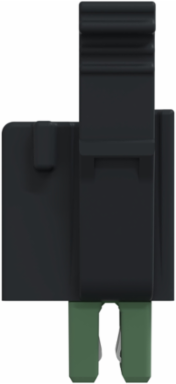

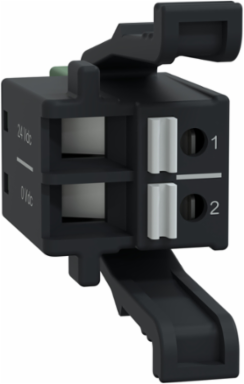

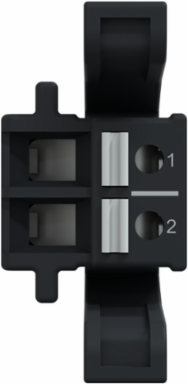

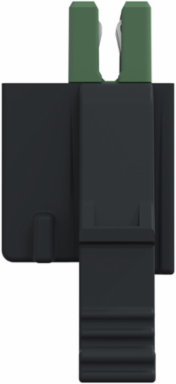

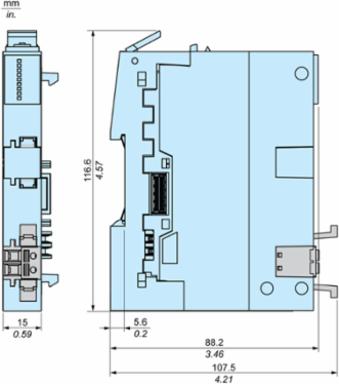

Schneider Electric NTSXTB02230H Spring Terminal Block, 2 Points, 5mm Pitch, Use on Power Supply Module, Hardened, Modicon Edge I/O NTS
- MPN: NTSXTB02230H
- PPN: SCH-NTSXTB02230H
CAD
$13.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This spring terminal block is part of the Modicon Edge I/O NTS range. It is a spring terminal block with a plastic cover to use on power supply modules. It has 2 connection points and a 5mm Pitch and handles DC voltage. This removable terminal block allows quick and easy disconnection of wiring, minimizes system downtime during maintenance or troubleshooting. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20 and benefits from a Protective coating. It is compatible with bus and field power supply modules. It is sold individually per pack. It connects to the front face of the power supply module. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia, Philippines, United States
Physical Attributes
- Color
- Gray
Important Information Attributes
- Certificate Agency
- CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.025697688063092333
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0 kg CO2 eq., 0.0355455176028268
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2024-12-19
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- Not applicable
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Marking
- cURus
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- none
- Range Of Product
- Modicon Edge I/O NTS
- Shock Resistance
- 15 g 11 ms with and without accessory)
- Sustainable Packaging
- Yes
- Vibration Resistance
- 1 g without accessory2 g with accessory
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To provide a secure connection for wiring and facilitate the transmission of electrical signals between the Modicon Edge I/O and connected devices during 20 years with a 100% use rate. To provide a secure connection for wiring and facilitate the transmission of electrical signals between the Modicon Edge I/O and connected devices during 20 years with a 100% use rate.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity origin
- Recyclability Potential In %
- 62
- Width Nominal
- 14 mm
- Accessory / Separate Part Destination
- power supply
- Accessory / Separate Part Designation
- terminal block for power supply module
- Package Weight(Lbs)
- 8.000 g
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]0.005416136362457772, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00005614850031479683, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.0029290472512886936
Local Publishable Date2026-01-12
Pre Comm Date2024-12-19
Stocking FlagN
Device TypeAutomation - Distributed inputs/ouputs
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2439
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Connector Typespring connector
Pin Number2
Product Or Component Typeterminal block
Quantity Per Setset of 1
ReturnabilityYes
Software Versionv6.2.2
Total Lifecycle Carbon Footprint0.1 kg CO2 eq.
Pep CodeENVPEP2409007EN
Pep Verification Date2024-12-03
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity origin
Energy Model - End Of Life [C1-c4]Electricity origin
Height Nominal30 mm
Accessory / Separate Part Categoryconnection accessories
Accessory / Separate Part Typeterminal block
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.06964453777998039
- Ambient Air Temperature For Storage
- -40-85 °C-40-85 °C
- Environmental Disclosure
- ENVPEP2409007EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- NTSPFB1002H module
- Relative Humidity
- 5-95 % without condensation
- Pep Verification Date
- 2024-12-03
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C-40-70 °C
Circularity ProfileNot applicable
Eu Rohs DirectiveCompliant
Operating Altitude0...6561.68 ft (0...2000 m) without derating2000 m...5000 m with derating
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP2409007EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- terminal block
