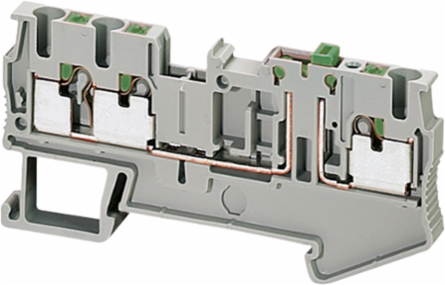

Schneider Electric NSYTRP23SC Linergy TR Terminal Block 2.5mm2, Push-in Type, 3 Points, Set of 50
- MPN: NSYTRP23SC
- PPN: SCH-NSYTRP23SC
- UNSPSC: 39121410
CAD
$11.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Manufactured by Schneider Electric, this set of 50 Linergy TR terminal blocks is designed for efficient and reliable connection in automation and control applications. The push-in type configuration allows for easy, tool-free installation, making them an ideal choice for quick assembly. Each terminal block accommodates 2.5mm2 conductor sizes and features three connection points, providing flexibility and solid performance in various electrical setups. With their robust construction and innovative design, these terminal blocks enhance the overall functionality of your control systems.
Features
- It belongs to linergy knife disconnect terminal block with 2.5 mm² nominal cross section
- Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
- Releasing pressure on the sides stops the flow of cable ends
- Facilitates storage by avoiding mixing cable ends of different sizes
- Identifies the cross section of cable ends it contains
Documentation & Downloads
Specifications
Key Specifications
| Weight | 9.845 g |
|---|
Physical Attributes
| Color | Gray |
|---|
| Wire Stripping Length | 10 mm |
|---|
Complementary Attributes
| Line Rated Current | 20-20 A EN/IEC 60947-7-1, 20-20 A UL, 20-20 A CSA |
|---|
| Ue Rated Operational Voltage | 300 V CSA, 300 V UL400 V EN/IEC 60947-7-1 |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Cable Cross Section | 0.14-2.5 mm², flexible without cable end, 0.14-4 mm², solid |
| Dielectric Loss | 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4 |
| Surface Resistance | 1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30 |
| Carbon Footprint Of The Distribution Phase A4 | 0.001287397, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.001162282, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 4 kg CO2 eq., 4.4787 |
| Local Publishable Date | 2026-06-27 |
| Use Carbon Footprint | 4.4787 |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Connection Position | top |
| Dielectric Constant | 3.7 at 1 MHz |
| Energy Efficiency Optimized | False |
| Material | polyamide 6/6: insulating case |
| Nominal Cross Section | 2.5 mm² |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | terminal block |
| Range | Linergy |
| Returnability | No |
| Sustainable Packaging | Yes |
| Terminal Block Type | blade disconnect |
| Total Lifecycle Carbon Footprint | 5 kg CO2 eq. |
| Database Version | 2022-01 |
| Height Nominal | 36.5 mm |
| Width Nominal | 5.2 mm |
| Customs Code | 8536904000 |
| Silicone Free | Yes |
| Functional Unit Description | Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 19 A, a rated cross-section 2.5 mm2, a rated voltage 550 V, a short-time withstand current 0.3 kA. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 33 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Creep Resistance | 500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30 |
| Resistivity | 10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30 |
| Certificate Agency | CSA, VDE, UL, GL |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.025355777 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.1 kg CO2 eq., 0.061214522 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2518 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | terminal block |
| Device Short Name | TRP |
| Dielectric Strength | 1000 V IEC 60243-1 |
| Flame Retardance | V0 0.8 mm UL 94 |
| Mounting Mode | clip-on |
| Number Of Terminals | 3 |
| Product Name | Linergy TR |
| Quantity Per Set | set of 50 |
| Range Of Product | Linergy |
| Software Version | v5.9.4 |
| Terminal Block Level | 1 |
| Tool Type | disconnection flat screwdriverconnection without tool |
| Connections Terminals | 1 x push-in upstream2 x push-in downstream |
| Data Source | extrapolated product |
| Length Total | 72 mm |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free plastic parts product |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Halogene Performance | Halogen free plastic parts product |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP2309019EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2309019EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Operation | -40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21 |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 4.567719978 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | Spacial enclosures |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | terminal block |
|---|
| Range Of Product | Linergy |
|---|
ETIM
| ETIM 8 | EC000902 |
|---|---|
| ETIM 10 | EC000902 |
| ETIM 9 | EC000902 |
|---|
Input Attributes
| Number Of Measurement Input | 2 |
|---|
