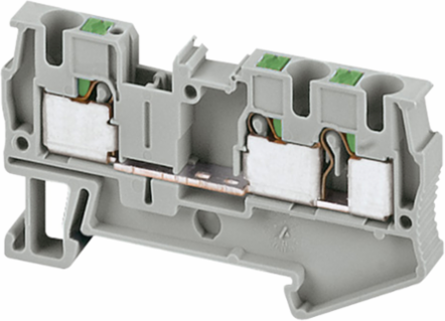

Schneider Electric NSYTRP43 Linergy TR Terminal Block, 4mm2, Push-in, 3 Points, Set of 50
- MPN: NSYTRP43
- PPN: SCH-NSYTRP43
CAD
$4.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The NSYTRP43 Linergy TR Terminal Block from Schneider Electric is designed for efficient and reliable electrical connections in automation and control applications. Each terminal block features push-in connections for quick and secure wiring, accommodating conductor sizes up to 4mm2 with three points of contact for enhanced stability. Supplied in a convenient set of 50, these terminal blocks are ideal for both panel builders and electrical engineers seeking to streamline their projects and improve overall system performance. With its robust construction, this terminal block ensures long-lasting operation in demanding environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Poland, United States
Physical Attributes
- Color
- Gray
Wire Stripping Length12 mm
Complementary Attributes
- Line Rated Current
- 32-32 A EN/IEC 60947-7-130-30 A CSA, 30-30 A UL
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cable Cross Section
- 0.2-4 mm², solid without cable end0.2-4 mm², flexible without cable end0.2-6 mm², solid with cable end, 0.8-4 mm², flexible with cable end
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
- Resistivity
- 10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
- Certificate Agency
- UL, GL, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.001307666, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.001180581, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 6 kg CO2 eq., 5.932823377
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Weee Applicability
- Component
- Weee Exclusion Rationale
- Component not in scope – non independent function
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2518
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- terminal block
- Device Short Name
- TRP
- Dielectric Strength
- 1000 V IEC 60243-1
- Flame Retardance
- V0 0.8 mm UL 94
- Nominal Cross Section
- 4 mm²
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- terminal block
- Range
- Linergy
- Returnability
- No
- Sustainable Packaging
- Yes
- Terminal Block Type
- passthrough
- Total Lifecycle Carbon Footprint
- 6 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 19 A, a rated cross-section 2.5 mm2, a rated voltage 550 V, a short-time withstand current 0.3 kA.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; GE
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 33
- Length Total
- 66.5 mm
- Accessory / Separate Part Category
- connection accessory
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 10.000 g
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
Materialpolyamide 6/6: insulating casecopper alloy: connector and screw, copper alloy: commoning linkchromium-nickel steel: spring
Surface Resistance1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
[Ue] Rated Operational Voltage800 V EN/IEC 60947-7-1600 V CSA, 600 V UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.025754979
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.062178285
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Positiontop
Dielectric Constant3.7 at 1 MHz
Energy Efficiency OptimizedFalse
Mounting Modeclip-on
Number Of Terminals3
Product NameLinergy TR
Quantity Per Setset of 50
Range Of ProductLinergy
Software Versionv5.9.4
Terminal Block Level1
Tool Typeconnection without tooldisconnection flat screwdriver
Pep CodeENVPEP2309019EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal36.5 mm
Width Nominal6.2 mm
Connections - Terminals1 x push-in upstream2 x push-in downstream
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Halogene Performance
- Halogen free plastic parts product
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2309019EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2309019EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint6.023244888
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Product CompatibilitySpacial enclosures
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- terminal block
Range Of ProductLinergy
ETIM
- ETIM 8
- EC000897
ETIM 9EC000897
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Number Of Measurement Input
- 2
