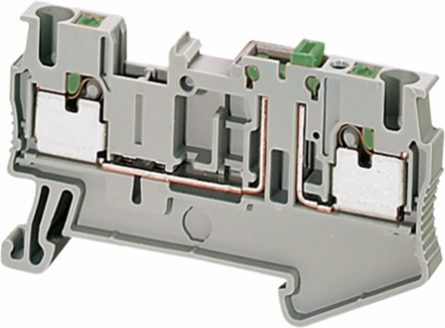

Schneider Electric NSYTRP22SC Terminal Block, Linergy TR, 2.5mm2, Push-in, Set of 50
- MPN: NSYTRP22SC
- PPN: SCH-NSYTRP22SC
CAD
$10.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for superior connectivity in automation and control applications, the Schneider Electric NSYTRP22SC Terminal Block features a push-in design for quick and secure installations. This set of 50 terminal blocks operates with a cross-section of 2.5mm2, making it an ideal choice for various wiring tasks. The Linergy TR series exemplifies quality and reliability, ensuring that your connections are not only efficient but also durable in demanding environments. Whether for industrial or commercial uses, these terminal blocks provide the essential links for your electrical circuits.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Poland, United States
Physical Attributes
- Color
- Gray
Wire Stripping Length10 mm
Complementary Attributes
- Line Rated Current
- 20-20 A EN/IEC 60947-7-1, 20-20 A UL, 20-20 A CSA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cable Cross Section
- 0.14-2.5 mm², flexible without cable end, 0.14-4 mm², solid
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
- Surface Resistance
- 1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
- [Ue] Rated Operational Voltage
- 300 V CSA, 300 V UL400 V EN/IEC 60947-7-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.001074379, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.000969965, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 4 kg CO2 eq., 4.4787
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Use Carbon Footprint
- 4.4787
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Connection Position
- top
- Dielectric Constant
- 3.7 at 1 MHz
- Energy Efficiency Optimized
- False
- Material
- polyamide 6/6: insulating case
- Nominal Cross Section
- 2.5 mm²
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- terminal block
- Range
- Linergy
- Returnability
- No
- Sustainable Packaging
- Yes
- Terminal Block Type
- blade disconnect
- Total Lifecycle Carbon Footprint
- 5 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 19 A, a rated cross-section 2.5 mm2, a rated voltage 550 V, a short-time withstand current 0.3 kA.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; GE
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 33
- Length Total
- 62 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 9.0 g
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 4.4727
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 114.1
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 6.6592
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 21.911
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 21.911
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
Resistivity10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
Certificate AgencyVDE, GL, CSA, UL
Connections - Terminals1 x push-in upstream, 1 x push-in downstream
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.021160291
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.051085679
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee ApplicabilityComponent
Weee Exclusion RationaleComponent not in scope – non independent function
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2518
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility Codeterminal block
Device Short NameTRP
Dielectric Strength1000 V IEC 60243-1
Flame RetardanceV0 0.8 mm UL 94
Mounting Modeclip-on
Number Of Terminals2
Product NameLinergy TR
Quantity Per Setset of 50
Range Of ProductLinergy
Software Versionv5.9.4
Terminal Block Level1
Tool Typedisconnection flat screwdriverconnection without tool
Pep CodeENVPEP2309019EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal36.5 mm
Width Nominal5.2 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]4.4787
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]48.232
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]136.02
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]114.1
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Halogene Performance
- Halogen free plastic parts product
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2309019EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2309019EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint4.552990314
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Product CompatibilitySpacial enclosures
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- terminal block
Range Of ProductLinergy
ETIM
- ETIM 8
- EC000902
ETIM 9EC000902
Input Attributes
- Number Of Measurement Input
- 2
Accessories
