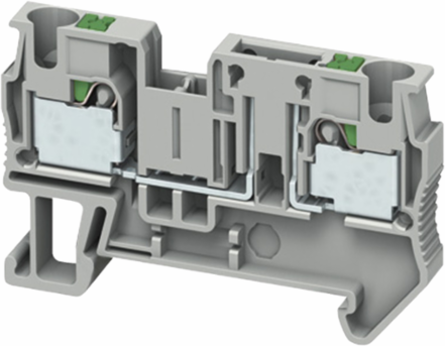

Schneider Electric NSYTRP42TB Linergy TR Push-in Terminal Block, 2 Points, 4mm2, Set of 50
- MPN: NSYTRP42TB
- PPN: SCH-NSYTRP42TB
CAD
$7.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric NSYTRP42TB Linergy TR Push-in Terminal Block is engineered to enhance your automation and control projects with exceptional efficiency. Designed with two points and accommodating wire sizes up to 4mm2, this terminal block facilitates easy and reliable connections in various electrical applications. Supplied in a convenient set of 50, these push-in terminal blocks not only streamline installation but also ensure secure and consistent performance across your systems, making them an essential component for any professional looking to optimize their wiring solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Poland, United States
Physical Attributes
- Fuse Size
- 5 x 20 mm, 6 x 32 mm
- Wire Stripping Length
- 10 mm
ColorGray
Complementary Attributes
- Line Rated Current
- 20-20 A EN/IEC 60947-7-1, 20-20 A UL, 20-20 A CSA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Connection Component
- diode, cylindrical fuse, blade
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
- Resistivity
- 10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
- Certificate Agency
- CSA, UL, VDE, GL
- Connections - Terminals
- 1 x push-in upstream, 1 x push-in downstream
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.021711448
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.052416294
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Connection Position
- top
- Dielectric Constant
- 3.7 at 1 MHz
- Energy Efficiency Optimized
- False
- Material
- polyamide 6/6: insulating case
- Nominal Cross Section
- 4 mm²
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- terminal block
- Range
- Linergy
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Terminal Block Type
- removable carrier disconnect
- Total Lifecycle Carbon Footprint
- 6 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 19 A, a rated cross-section 2.5 mm2, a rated voltage 550 V, a short-time withstand current 0.3 kA.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; GE
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 33
- Length Total
- 56 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 8.0 g
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Cable Cross Section0.2-4 mm², flexible without cable end, 0.2-6 mm², solid
Dielectric Loss0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
Surface Resistance1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
[Ue] Rated Operational Voltage400 V EN/IEC 60947-7-1300 V UL, 300 V CSA
Carbon Footprint Of The Distribution Phase [A4]0.001102363, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00099523, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]6 kg CO2 eq., 5.932823377
Local Publishable Date2026-06-27
Stocking FlagN
Weee ApplicabilityComponent
Weee Exclusion RationaleComponent not in scope – non independent function
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2518
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility Codeterminal block
Device Short NameTRP
Dielectric Strength1000 V IEC 60243-1
Flame RetardanceV0 0.8 mm UL 94
Mounting Modeclip-on
Number Of Terminals2
Product NameLinergy TR
Quantity Per Setset of 50
Range Of ProductLinergy
Software Versionv5.9.4
Terminal Block Level1
Tool Typedisconnection flat screwdriverconnection without tool
Pep CodeENVPEP2309019EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal36.5 mm
Width Nominal6.2 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Halogene Performance
- Halogen free plastic parts product
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2309019EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2309019EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint6.009048711
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Product CompatibilitySpacial enclosures
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- terminal block
Range Of ProductLinergy
ETIM
- ETIM 8
- EC000903
ETIM 9EC000903
Input Attributes
- Number Of Measurement Input
- 2
