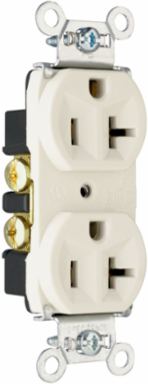

Pass & Seymour 5362LA 20A 125V Hard Use Spec-Grade Duplex Receptacle, 1.32 Inch Width, Light Almond
- MPN: 5362LA
- UPC: 785007194395
- PPN: P-S-5362LA
CAD
$26.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
eHard Use Spec Grade Duplex Receptacle Back and Side Wire 20A 125V
Features
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face.
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
- Terminal compartments isolated from each other for positive conductor containment.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Color
- Light Almond
- Width
- 1.32 in
- Country of Origin
- Mexico
- Amperage
- 20.0 A
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Standard
- CSA C22.2 No. 42
- Number of Poles
- Double Pole
- NEMA Configuration Code
- 5-20R
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Wire Connection Type
- Internal Pressure Plates
Height2.635 in
FinishMatte
Product LinePass & Seymour
StandardUL498
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Number of Receptacles2.0
Outlet TypeStraight Blade
Application SectorCommercial
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Dielectric StrengthWithstands 2000V minimum
FeaturesSingle Piece Plated Steel Mounting Strap
