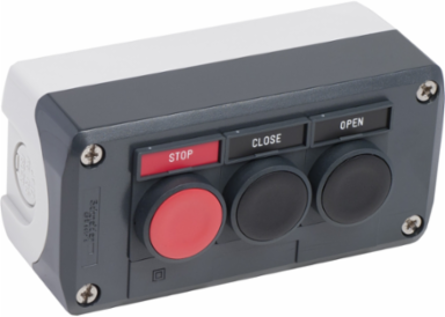

Schneider Electric XALD321S1H7 Harmony XALD Control Station, 22mm Push Buttons, 6A 600V, NEMA 4X
Schneider Electric XALD321S1H7 Harmony XALD Control Station, 22mm Push Buttons, 6A 600V, NEMA 4X
- MPN: XALD321S1H7
- PPN: SCH-XALD321S1H7
- UNSPSC: 39121565
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$194.77/ EA
Description
XAL control stations are suitable for most common functions. This control station has three 22mm push buttons. One flush black push button operator has a normally open contact and is marked UP. One flush black push button operator has a normally open contact and is marked DOWN. One flush red push button has a normally closed contact and is marked STOP. Contacts have UL A600, UL Q600, IEC AC15 and IEC DC13 contact ratings. Enclosure has knockouts for wire entry. Control Station is 5.35 inches tall, 2.68 inches wide and 2.44 inches deep. The relay weighs 0.66 lbs. Control station is UL Listed and CSA certified. "This product meets EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-5 and EN/IEC 60947-5-1 standards." "This range of control stations combines simplicity of setup with compact size and flexibility. It is ideal for applications requiring good resistance to chemical agents." "Plastic XALD/XALK control stations and enclosures for Ø 22mm plastic pushbuttons (XB5/ZB5 range)."
Features
- Low-load electrical contact
- Fully-assembled
- Double electrical insulation
- Wide range of operating temperature from -40°C to 70°C
Specifications
Physical Attributes
- Color Of Cover
- dark grey, dark grey RAL 7016)
- Housing Color
- grey
Color Of Base Of Enclosurelight grey RAL 7035)
Conformance Attributes
- Standards
- IEC 60947-5-4, IEC 60947-1, IEC 60947-5-5, IEC 60947-5-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cable Entry
- 2 knock-outs for cable entry 14-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Ie Rated Operational Current2
- 6 A 120 V, AC-15, A600 IEC 60947-5-1, 3 A 240 V, AC-15, A600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.6 kg CO2 eq., 0.6226672987015506
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 2 kg CO2 eq., 1.5831899241373928
- Connections Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Ie Rated Operational Current5
- 6 A 120 V, AC-15, A600 IEC 60947-5-1, 3 A 240 V, AC-15, A600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
- Local Publishable Date
- 2026-01-12
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Compatibility Code
- XALD
- Control Station Application
- three functions
- DC Control Voltaage
- 125-600 V
- Electrical Shock Protection Class
- class II conforming to IEC 60536
- Housing Material
- plastic
- Mechanical Durability
- 5000000 cycles
- Package Weight Lbs
- 0.301 kg
- Product Destination
- for XB5 Ø 22 mm control and signalling units
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Short Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Vibration Resistance
- 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
- Ith Conventional Free Air Thermal Current2
- 10 A IEC 60947-5-1
- Uimp Rated Impulse Withstand Voltage2
- 6 kV IEC 60947-1
- Ac Control Voltage 60 Hz
- 120-600 V
- Stocking Flag
- N
- Emergency Power Off Epo3
- no
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Harmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; High voltage; 2020; France, FR
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; Global, GLO
- Global Commercial Status
- Commercialised
- Ui Rated Insulation Voltage5
- 600 V 3)IEC 60947-1
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Color Of Coverdark grey, dark grey RAL 7016)
Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Carbon Footprint Of The Distribution Phase A40.21257263933090792, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0012529230187181394, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Connections Terminals3screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Local Data StatusPublishable
ManufacturerSchneider Electric
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2506022EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Color Of Base Of Enclosurelight grey RAL 7035)
Contacts Materialsilver alloy (Ag/Ni)
Control Station Composition1 flush push-button
Device Short NameXALD
Housing Colorgrey
Materialpolycarbonate
Operator Profile3 flush push-buttons
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typecomplete control station
Range Of ProductHarmony XALD
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ui Rated Insulation Voltage2600 V 3)IEC 60947-1
Ac Control Voltage 50 Hz120-600 V
Medium Desc22mm push button, Harmony XALD, complete control station, 3 push button, 6A, 600V, NEMA 4X, 13
Product Kit IdentifierN
Pep CodeENVPEP2506022EN
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Ith Conventional Free Air Thermal Current510 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage56 kV IEC 60947-1
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP66 IEC 60529, IP69, IP69K, IP67, IP66/IP67/IP69/IP69K
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 2.4196827851885696
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP2506022EN
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of ProtectionNEMA 4X/13, NEMA 13, NEMA 4X
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Circularity ProfileENVEOLI2506022EN
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP2506022EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete control station
Range Of ProductHarmony XALD
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
