Schneider Electric XB4RFA02 Wireless Push Button 22mm, 24-240V AC/DC, Metal Bezel, 10 Caps

MPN: XB4RFA02
PPN: SCH-XB4RFA02
UNSPSC: 39122216

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$308.14

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

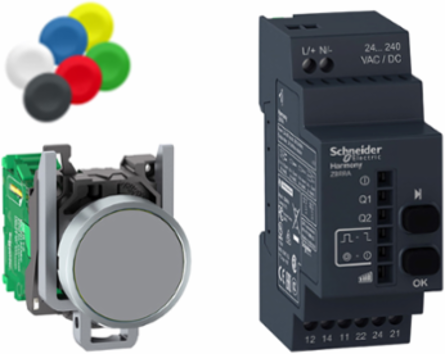

This Harmony XB4 flush wireless and batteryless push button and receiver unit set is supplied with a set of 10 colored caps and uses a 24V to 240V AC input. It has a metal bezel. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes. The button is easily installed into standard 22mm diameter panel cut-outs, while the receiver is DIN rail mountable.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
Various types of connection: screw clamp, connector, Faston connector or spring terminal
Excellent mechanical connection with operator head
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	264 g

Communications & Management Attributes

Communication Port Protocol	Zigbee IEEE 802.15.4

Complementary Attributes

Us Rated Supply Voltage	24...240 V, 24...240 V AC/DC 50/60 Hz

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	0, no
Radio Agreement	ANATEL, FCC, RSS, ARIB T66, ICASA, SRRC
Supply Voltage	24...240 V
Certificate Agency	GOST, CCC, CSA, UL, C-tick
Carbon Footprint Of The End Of Life Phase C1 To C4	0.4 kg CO2 eq., 0.3936161858
Carbon Footprint Of The Manufacturing Phase A1 To A3	7 kg CO2 eq., 6.7833855377
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Antenna Type	omnidirectional
Control Type	wireless and batteryless push-button Ø 22 mm assembled on fixing collar
Head Material	metal
Marking	CE
Modulation Technique	O-QPSK
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony XB4R
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	7 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Customs Code	8537109170
Functional Unit Description	This pack comprises one wireless and batteryless pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. The product uses 0.72W of power when it is active and 0.6W of power when it is in standby mode for 99.86% of the time over the period of 10 years.
Functional Unit Unit	Unit
Recyclability Potential In %	2

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial

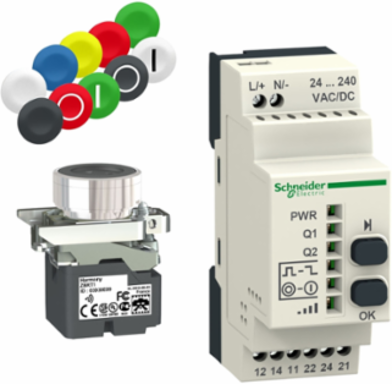

Kit Composition	1 22 mm, 1 push-button head 22 mm, 1 receiver, 1 set of caps, 1 fixing collars, 1 transmitter
Status Led	1 LED Green power ON2 LEDs Green relay ON, 2 LEDs Green function mode1 LED green and yellow reception signal
Transmission Frequency	2405 MHz transmitter, 2405 MHz receiver
Carbon Footprint Of The Distribution Phase A4	0.0921883252, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0783819858, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.1 kg CO2 eq., 0.0599641432
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2303007EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Antenna Gain	0 dBi
Compatibility Code	XB4R
Device Short Name	XB4R
Level Or Class	5M00G7W
Max Power Consumption In W	1 mW
Number Of Channels	1
Product Or Component Type	wireless and batteryless package
Returnability	Yes
Sustainable Packaging	No

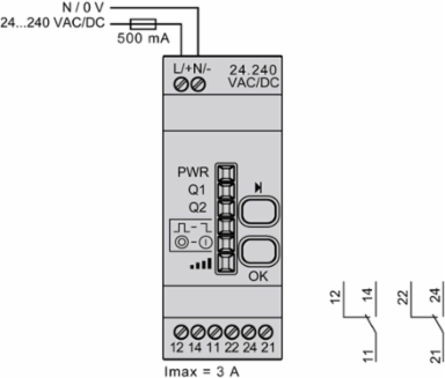

Type Of Receiver	programmable receiver 2 relays)
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	7.4075361776
Environmental Disclosure	ENVPEP2303007EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2303007EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2303007EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
