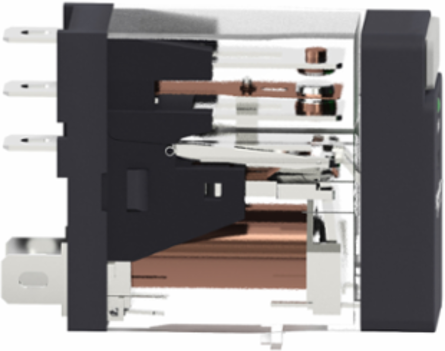

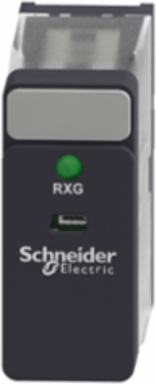

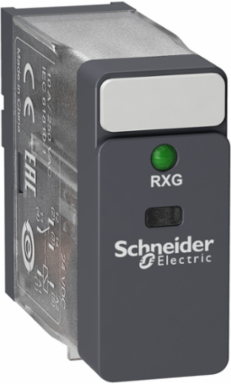

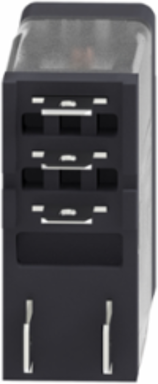

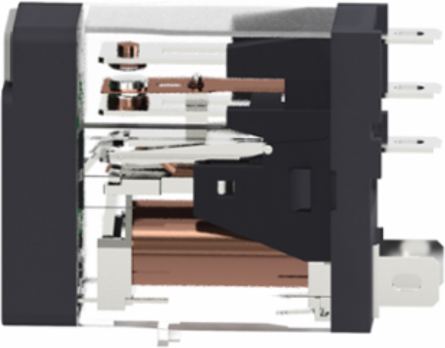

Schneider Electric RXG13BD interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, 24V DC
Schneider Electric RXG13BD interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, 24V DC
- MPN: RXG13BD
- PPN: SCH-RXG13BD
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$13.80/ EA
Description
This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Specifications
Complementary
- Utilisation Coefficient
- 20 %
- Safety Reliability Data
- B10d = 100000
- Insulation Resistance
- 1000 MOhm 500 V DC
- Torque Value
- 0.8 N.m
- Test Levels
- level A group mounting
- Pollution Degree
- 2
- Dielectric Strength
- 1000 V AC between contacts micro disconnection || 5000 V AC between coil and contact reinforced insulation
- Net Weight
- 0.02 kg
- Maximum Switching Voltage
- 250 V AC || 30 V DC
- [Ie] Rated Operational Current
- 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
- Electrical Durability
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Resistance
- 1100 Ohm +/- 10 %
- Overvoltage Category
- III
- Drop-Out Voltage Threshold
- >= 0.1 Uc DC
Maximum Switching Capacity2500 VA
[Uc] Control Circuit Voltage24 V DC
Operating Rate<= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
Protection CategoryRT I
Contacts Materialsilver alloy (AgSnO2In2O3)
Shock Resistance20 gn in operation || 100 gn not in operation
Status Ledwith
Colour Of Coverstandard
Device Presentationcomplete product
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Mechanical Durability10000000 cycles
Mounting Positionany position
Load Current10 A 250 V AC
Minimum Switching Capacity500 mW 100 mA, 5 V DC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406006EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- interface relay
- Local Signalling
- flag
- [Ithe] Conventional Enclosed Thermal Current
- 10 A -40-55 °C
Product Or Component Typeplug-in relay
Contacts Type And Composition1 C/O
Device Short NameRXG
Environment
- Product Certifications
- CSA || CE || EAC || UL || DNV-GL
- Standards
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Relative Humidity
- 10-85 %
- Ip Degree Of Protection
- IP40
Ambient Air Temperature For Operation-40-70 °C
Vibration Resistance3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Ambient Air Temperature For Storage-40-85 °C
