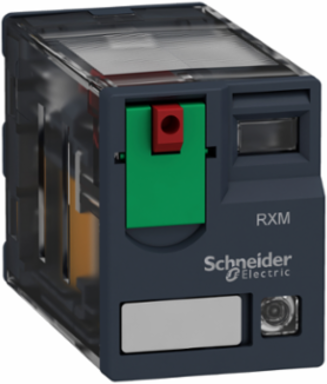

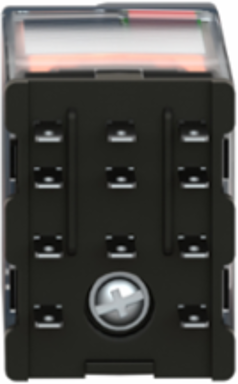

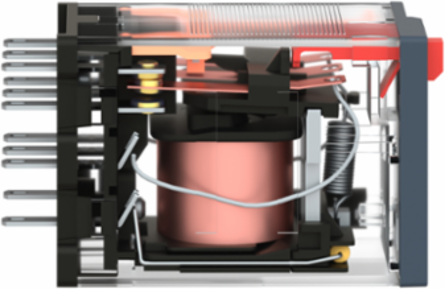

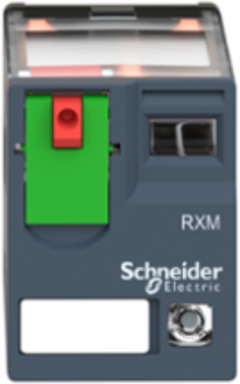

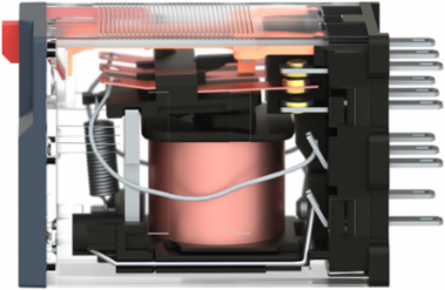

Schneider Electric RXM3AB2F7 Miniature Plug-in Relay, 10A, 3 C/O, 120V AC, LED Indicator
- MPN: RXM3AB2F7
- PPN: SCH-RXM3AB2F7
CAD
$19.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Miniature Plug-in Relay, 10A, 3 C/O, 120V AC, LED Indicator
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, Singapore, United States |
|---|
Physical Attributes
| Cad Overall Depth | 78.45 mm |
|---|
| Cad Overall Height | 79 mm |
|---|
Complementary Attributes
| Control Circuit Type | AC |
|---|---|
| Maximum Switching Capacity | 2500 VA/280 W |
| Minimum Switching Capacity | 170 mW 10 mA, 17 V |
| Line Rated Current | 10 A |
|---|---|
| Maximum Switching Voltage | 250 V IEC |
| Rated Operational Voltage Limits | 96...132 V AC |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Dielectric Strength | 1300 V AC between contacts with micro disconnection2000 V AC between coil and contact, 2000 V AC between poles |
| Control Circuit Voltage | 120 V |
| Certificate Agency | UL, Lloyd's, CE, CSA, EAC, IECEE CB Scheme |
| [Uc] Control Circuit Voltage | AC 50/60 Hz, 120 V |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0047738385, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0002262618 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 24 kg CO2 eq., 24.2763565509 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2106019EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Coil Consumption In Va | 1.2-1.2 60 Hz |
| Average Resistance | 4430 Ohm 20 °C +/- 15 % |
| Contacts Material | AgNi |
| Control Type | lockable test button |
| Load Current | 10 A 250 V AC10 A 28 V DC |
| Operating Position | any position |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Category | RT I |
| Relay Type | miniature relay |
| Returnability | Yes |
| Series Name | RXM series |
| Shock Resistance | 10 gnin operation30 gnnot operating |
| Status Led | with |
| Test Levels | level A group mounting |
| Utilisation Coefficient | 20 % |
| Pep Code | ENVPEP2106019EN |
| Pep Verification Date | 2021-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity mix; AC; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; 120V; US |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Drop-out Voltage Threshold | >= 0.15 Uc>= 0.15 Uc |
| Package Weight(Lbs) | 37.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Operating Rate | <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load |
| Control Circuit Type2 | AC |
| [Ie] Rated Operational Current | 5 A 250 V AC) NC IEC10 A 28 V DC) NO IEC10 A 250 V AC) NO IEC5 A 28 V DC) NC IEC10 A 30 V DC) UL, 10 A 277 V AC) UL |
| [Ui] Rated Insulation Voltage | 250 V IEC300 V CSA, 300 V UL |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.0048399687, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.3 kg CO2 eq., 0.2927376966 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Consumption | 1.2 VA 60 Hz |
| Compatibility Code | RXM |
| Contacts Type And Composition | 3 C/O |
| Electrical Durability | 100000 cycles resistive |
| Mechanical Durability | 10000000 cycles |
| Operating Time | 20 ms |
| Product Or Component Type | plug-in relay |
| Range Of Product | Harmony Electromechanical Relays |
| Reset Time | 20 ms |
| Safety Reliability Data | B10d = 100000 |
| Shape Of Pin | flat (faston type) |
| Software Version | EIME v5.9.1 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 25 kg CO2 eq. |
| Vibration Resistance | 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | RXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; 120V; US |
| Recyclability Potential In % | 55 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV 1.2/50 µs |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490075 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | -40-55 °C-40-55 °C |
| Environmental Disclosure | ENVPEP2106019EN |
| Ip Degree Of Protection | IP40 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2021-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 24.5789343165 |
| Circularity Profile | ENVEOLI2106019EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2106019EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | plug-in relay |
|---|
| Range Of Product | Harmony Electromechanical Relays |
|---|
ETIM
| ETIM 8 | EC001437 |
|---|
| ETIM 9 | EC001437 |
|---|
Output Attributes
| Continuous Output Current | 6.7 A |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
