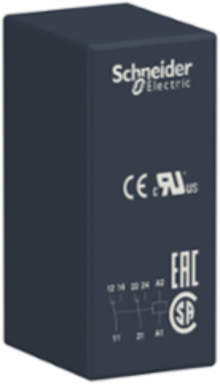

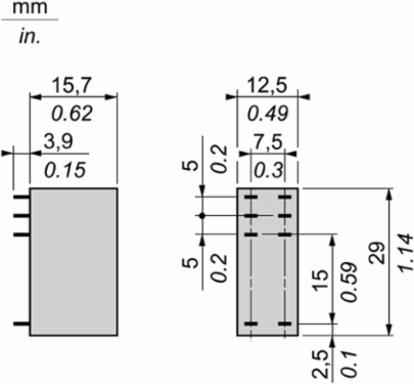

Schneider Electric RSB2A080BD Harmony Plug-in Relay, 8A, 2 C/O, 24V DC, IP40

MPN: RSB2A080BD
PPN: SCH-RSB2A080BD

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$12.28

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V DC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Features

Operating on a standard 24V DC control voltage, this Double Pole Double Throw (2 C/O) interface relay is specifically engineered to safely switch loads up to 8 Amps. This provides crucial galvanic isolation between your sensitive Programmable Logic Controller (PLC) micro-signals and higher-power industrial actuators, preventing destructive voltage spikes from frying expensive automation control boards.
Designed as a highly compact electromechanical relay, this component integrates perfectly into compatible Schneider RSZE DIN-rail sockets. Its ultra-slim, low-profile footprint drastically reduces the required mounting space inside crowded motor control centers and OEM machinery, allowing panel builders to maximize valuable enclosure real estate without sacrificing switching reliability.
Manufactured with premium Silver-Nickel (AgNi) contacts, this Harmony RSB series relay is built to withstand millions of mechanical operations in demanding, continuous-duty automation applications. The modular plug-and-play design ensures that if a relay ever requires replacement, maintenance technicians can instantly swap the module directly from the socket without touching the panel wiring, drastically minimizing expensive machine downtime.
Fully recognized by CE, UL, CSA, and EAC standards, this robust industrial relay meets the strictest international electrical safety and performance directives. Specifying globally certified, RoHS-compliant control components ensures your custom-built automation equipment, HVAC systems, or power distribution panels will seamlessly pass rigorous safety inspections regardless of the destination market.
