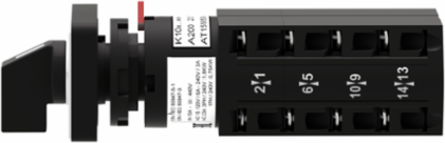

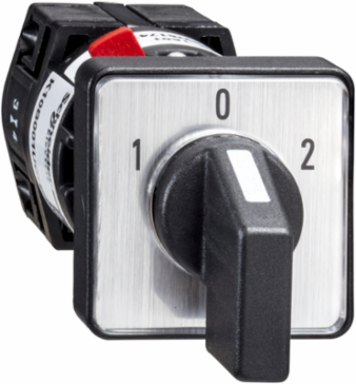

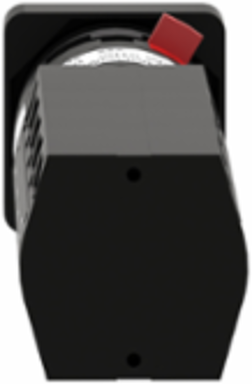

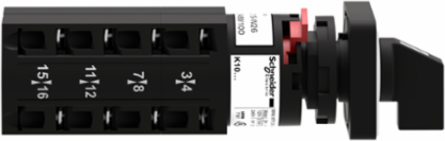

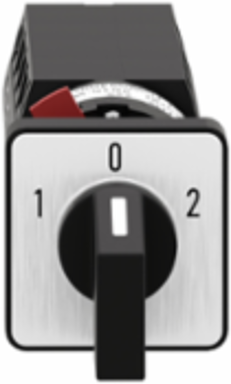

Schneider Electric K10H004UCH Harmony K1 4-Pole Complete Cam Switch, 10A, 30x30mm, IP65
- MPN: K10H004UCH
- PPN: SCH-K10H004UCH
CAD
$136.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony K10 complete cam switch/selector switch has 4 poles (4P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 0 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria
Physical Attributes
- Cad Overall Depth
- 112 mm
- Cad Overall Width
- 30 mm
Cad Overall Height30 mm
Complementary Attributes
- Rated Operational Power In W
- 1800 W AC-23A, 220/240 V 3 phase, 370 W AC-23A, 110/120 V 1 phase, 750 W AC-23A, 220/240 V 1 phase
Rated Power In Hp0.75 hp 220/240 V AC, 1 phase1 hp 220/240 V AC, 3 phase, 0.33 hp 110/120 V AC, 1 phase, 0.75 hp 110/120 V AC, 3 phase
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Switching Positions
- left: 0° - 300°, right: 0° - 60°
- [Ie] Rated Operational Current Dc
- 10 A 24 V resistive, 0.3 A 220 V resistive, 0.7 A 110 V resistive
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.10088241914660045
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.509849714471841
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Cam Switch Function
- changeover switch
- Compatibility Code
- K10
- Contact Operation
- slow-break
- Electrical Durability
- 100000000 cycles
- Fixing Mode
- Ø 16 or 22 mm hole
- Number Of Poles
- 4P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- complete cam switch
- Range Of Product
- Harmony K
- Returnability
- No
- Software Version
- v6.3.0.1-4
- Switching Angle
- 60 °
- Type Of Operator
- Black handle
- Pep Code
- ENVPEP2312055EN
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Certificate Agency
- cULus
- [Ui] Rated Insulation Voltage
- 440 V 3)IEC 60947-1
- Short-circuit Protection
- 10 A cartridge fuse gG
- Package Weight(Lbs)
- 82.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
[Ie] Rated Operational Current Ac10 A 400 V AC-1, 10 A 400 V AC-21A, 3 A 240 V AC-15, 6 A 120 V AC-15
Carbon Footprint Of The Distribution Phase [A4]0.057910154236327095, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.014219521630884765, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cam Switch Head Typewith front plate 30 x 30 mm
Component NameK10
Electrical Connectioncaptive screw clamp terminals 2 x 1.5 mm²
Electrical Shock Protection Classclass II conforming to IEC 60536
Mechanical Durability1000000 cycles
Off Positionwith Off position
Product Mountingfront mounting
Protective TreatmentTC
Returnwithout
Rotary Handle Padlockingwithout
Sustainable PackagingYes
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe main purpose of the Harmony K1/K2 series of cam switches is to directly control simple machines and to provide process control in industry and buildings. This voltmeter phase switch offers the maximum mechanical and electrical robustness of its class for prolonged operation without maintenance. Its high IP allows for handling of panel operations in very dusty and wet environments including outdoors.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Czech Republic, CZ
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential, In %39
[Ith] Conventional Free Air Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-55 °C, -20-55 °C
- Ip Degree Of Protection
- contact block: IP20, operating head: IP65 conforming to IEC 60529
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2312055EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2312055EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint1.6828618094856533
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- complete cam switch
Range Of ProductHarmony K
ETIM
- ETIM 8
- EC001105
ETIM 9EC001105
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Presentation Of Legend
- with metallic, 1 - 0 - 2 black
