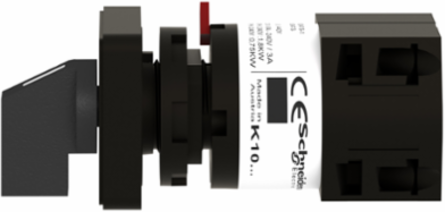

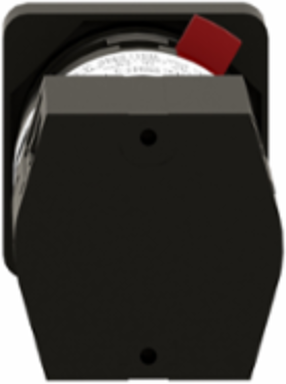

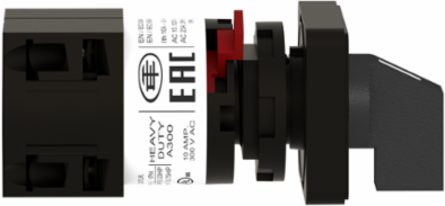

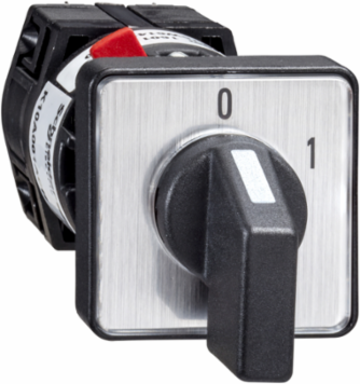

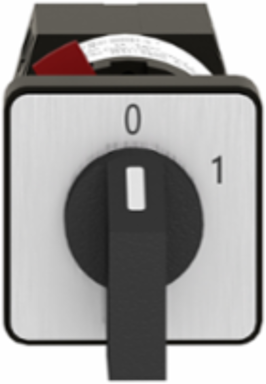

Schneider Electric K10A001ACH Complete Cam Switch, 1 Pole, 10A, 30mm x 30mm, IP65, with Marking 0-1
- MPN: K10A001ACH
- PPN: SCH-K10A001ACH
CAD
$51.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony K10 cam switch/selector switch has 1 pole (1P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "0 - 1" marking to indicate the position of the switch. This metal head cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony K
- Presentation Of Legend
- with metallic, 0 - 1 black
- Product Or Component Type
- complete cam switch
- Cam Switch Function
- switch
- Type Of Operator
- black handle
- Cam Switch Head Type
- with front plate 30 x 30 mm
- Poles Description
- 1P
- Return
- without
Fixing ModeØ 16 or 22 mm hole
Ip Degree Of Protectioncontact block: IP20 || operating head: IP65 conforming to IEC 60529
[Ith] Conventional Free Air Thermal Current10 A
Component NameK10
Switching Positionsright: 0° - 60°
Product Mountingfront mounting
Rotary Handle Padlockingwithout
Off Positionwith Off position
Complementary
- Short-Circuit Protection
- 10 A cartridge fuse gG
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- Switching Angle
- 60 °
- Electrical Durability
- 100000000 cycles
- Contact Operation
- slow-break
- Rated Power In Hp
- 0.33 hp 110/120 V AC, 1 phase || 0.75 hp 220/240 V AC, 1 phase
- Cad Overall Width
- 30 mm
- Rated Operational Power In W
- 370 W AC-23A, 110/120 V 1 phase || 750 W AC-23A, 220/240 V 1 phase
Net Weight0.03 kg
Cad Overall Height30 mm
Electrical Connectioncaptive screw clamp terminals 2 x 1.5 mm²
[Ui] Rated Insulation Voltage440 V 3)IEC 60947-1
Mechanical Durability1000000 cycles
[Ie] Rated Operational Current Dc10 A 24 V resistive || 0.3 A 220 V resistive || 0.7 A 110 V resistive
Cad Overall Depth76 mm
[Ie] Rated Operational Current Ac10 A 400 V AC-1 || 10 A 400 V AC-21A || 3 A 240 V AC-15 || 6 A 120 V AC-15
Environment
- Ambient Air Temperature For Operation
- -20-55 °C
- Standards
- CENELEC EN 50013 || IEC 60947-3 || IEC 60947-5-1
- Electrical Shock Protection Class
- class II IEC 60536
Product CertificationscULus
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
