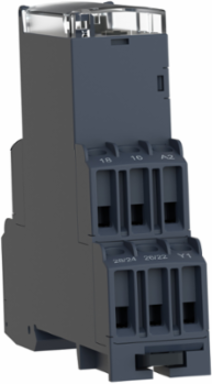

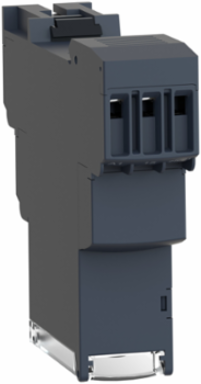

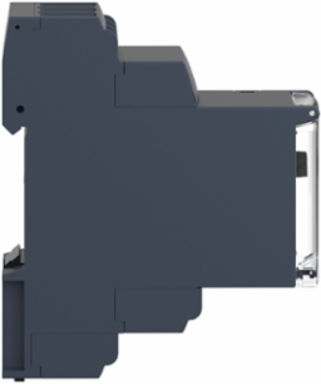

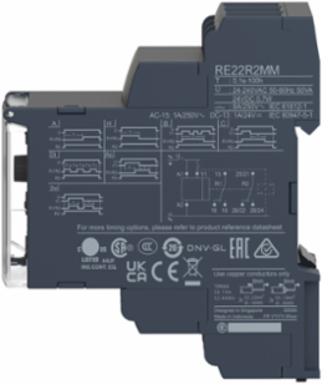

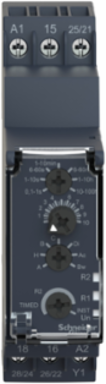

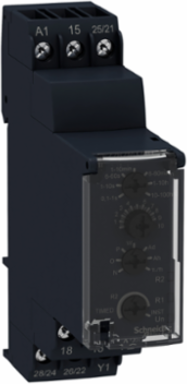

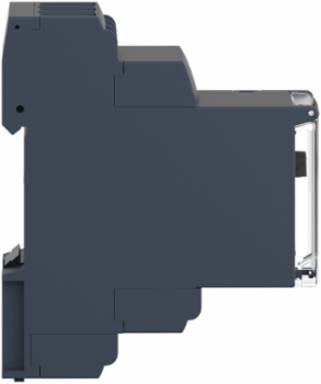

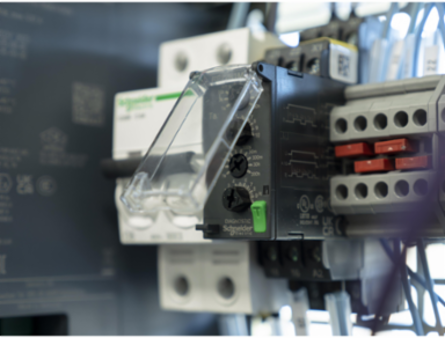

Schneider Electric RE22R2MMU Multifunction Timer Relay, 8A, 0.1s-100h, 24V DC / 24-240V AC
- MPN: RE22R2MMU
- PPN: SCH-RE22R2MMU
CAD
$104.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

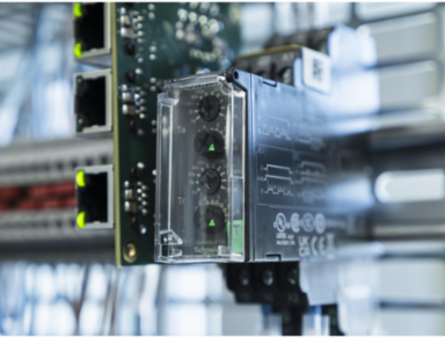

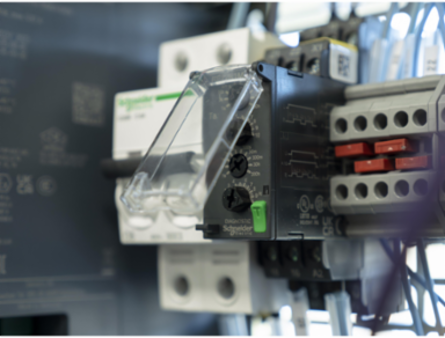

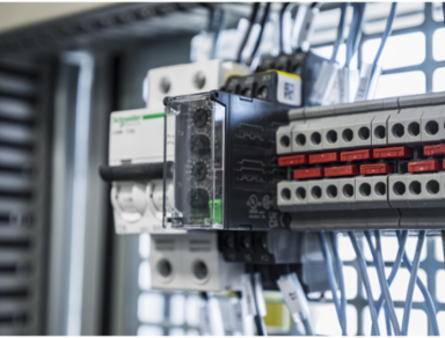

This Harmony RE22 modular multi function timer can be set between 0.1 seconds and 100 hours. It provides multi functions and it is mountable on DIN rail. This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Complementary Attributes
- Minimum Pulse Duration
- 30 ms, 100 ms under load
- Maximum Delay Response
- 100 ms
- Maximum Switching Voltage
- 250 V
Line Rated Current5 A
Maximum Switching Current8 mA
Minimum Switching Current10 mA 5 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contacts Type And Composition
- 1 C/O timed contact, 1 C/O timed or instantaneous contact, 2 C/O
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, conducted and radiated emissions class B conforming to EN 55022
- Repeat Accuracy
- +/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1
- Setting Accuracy Of Time Delay
- +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
- Temperature Drift
- +/- 0.05 %/°C, +/- 0.05 %/°C
- Time Delay Type
- power on-delay - A- Power on-delay relay, on-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal, power on-delay - At- Power on-delay relay w/ pause/summation (Y1), interval - B- Single interval relay w/ control signal, interval - Bw- Double interval relay w/ control signal, off-delay - C- Off-delay relay w/ control signal, symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off), symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on), interval - H- Interval relay, interval - Ht- Interval relay w/ pause/summation (Y1), A, Ac, At, B, Bw, C, D, Di, H, Ht, power on-delay, on-delay andinterval, off-delay, symmetrical flashing
- Contacts Composition
- 2 C/O
- Certificate Agency
- cULus, CSA, CE, CCC, RCM, GL, EAC
- [Uimp] Rated Impulse Withstand Voltage
- 5 kV 1.2-50 µs IEC 60664-1, 5 kV IEC 61812-1
- Connections - Terminals
- screw terminals, 2 x 1.5 mm² with cable end, screw terminals, 2 x 2.5 mm² without cable end, screw connectors
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0542643536, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.7232604563
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2502020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Short Name
- RE22
- Electrical Durability
- 100000 cycles for resistive load, 8 A at 250 V, AC
- Housing Material
- polycarbonate
- Insulation Resistance
- 100 MOhm 500 V DC IEC 60664-1
- Mounting Position
- any position in relation to normal vertical mounting plane
- Number Of Functions
- 10
- Power Consumption In W
- 0.7 W 24 V DC
- Product Or Component Type
- modular timing relay
- Reset Time
- 120 ms on de-energisation
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Supply Frequency
- 50...60 Hz +/- 5 %
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Vibration Resistance
- 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2502020EN
- Pep Verification Date
- 2018-04-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27

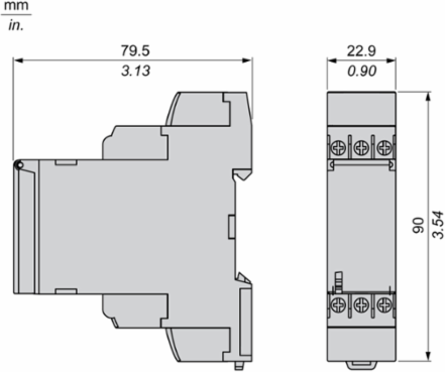

- Width Nominal
- 22.5 mm
- Package Weight(Lbs)
- 105.000 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 584.6
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 186.744
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 897.84
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 130.8
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 130.8
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Control Typerotary knob front panel, with test button, with test button

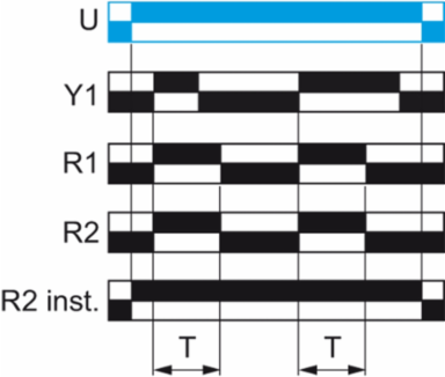

Function AvailableA- Power on-delay relay-2 C/O, Ac- On-delay and off-delay relay w/ control signal-2 C/O, At- Power on-delay relay w/ pause/summation (Y1)-2 C/O, B- Single interval relay w/ control signal-2 C/O, Bw- Double interval relay w/ control signal-2 C/O, C- Off-delay relay w/ control signal-2 C/O, D- Symmetrical flashing relay (starting pulse-off)-2 C/O, Di- Symmetrical flashing relay (starting pulse-on)-2 C/O, H- Interval relay-2 C/O, Ht- Interval relay w/ pause/summation (Y1)-2 C/O
Safety Reliability DataMTTFd = 182.6 years, B10d = 170000
Status LedGreen LED flashing)timing in progress, Green LED steady)power ON, Yellow LEDrelay energised
Time Delay Range10...100 h, 6...60 s, 0.1...1 s, 1...10 h, 1...10 s, 1...10 min, 6...60 min
Voltage Drift+/- 0.2 %/V, +/- 0.2 %/V
Supply Voltage Num 324...240 V AC, 24 V DC
[Uc] Control Circuit Voltage24 V, 24...240 V
[Us] Rated Supply Voltage24...240 V AC, 24 V DC
Carbon Footprint Of The Distribution Phase [A4]0.0116118821, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0005036065
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]52 kg CO2 eq., 51.5032
Local Publishable Date2026-03-26
Stocking FlagY
Use Carbon Footprint51.5032
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Dielectric Strength2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
Functionalitymultifunction
Immunity To Microbreaks10 ms
Mechanical Durability10000000 cycles
Mounting Support35 mm DIN rail conforming to IEC 60715
Power Consumption In Va50-50 VA 240 V AC
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Timer Relays
ReturnabilityYes
Software VersionEIME 5.7.0.2
Sustainable PackagingYes
Total Lifecycle Carbon Footprint53 kg CO2 eq.
Voltage Range0.85...1.1 Us
Database Version2018-03
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control an event based on time. The contacts switch ON or OFF before or after some period of time to control automation industrial system. during 10 years with a 100% use rate, in compliance with French standard.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh105.12
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]2216.72
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]51.5032
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]192.024
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1028.64
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]897.84
Water Pollution (M3) Operational Energy Use [B6]2125.2
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Directives
- 2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 53.2928402985
- Environmental Disclosure
- ENVPEP2502020EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2502020EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-30-60 °C, -30-60 °C
Ip Degree Of ProtectionIP40 housing: conforming to IEC 60529, IP20 terminal block: conforming to IEC 60529, IP40 front face: conforming to IEC 60529
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2502020EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Relative Humidity93-93 %, without condensation IEC 60068-2-30
Pep Verification Date2018-04-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- modular timing relay
Range Of ProductHarmony Timer Relays
ETIM
- ETIM 8
- EC001439
ETIM 9EC001439
Output Attributes
- Discrete Output Type
- relay
- Output Type
- relay
Nominal Output Current8 A
