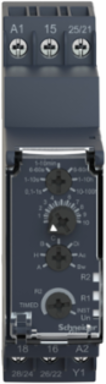

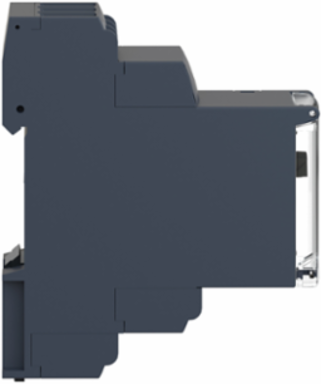

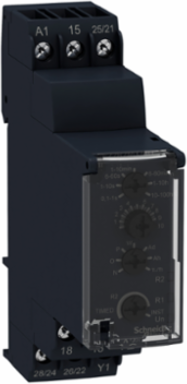

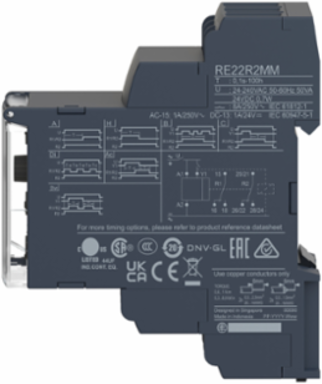

Schneider Electric RE22R2MMW Harmony Multifunction Relay, 8A, 0.1s to 100h, 12-240V AC/DC, 22.5mm

  • MPN: RE22R2MMW
  • PPN: SCH-RE22R2MMW
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $116.17

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony RE22 modular multi function timer can be set between 0.1 seconds and 100 hours. It provides multi functions and it is mountable on DIN rail. This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia, United States

    Complementary Attributes

    Minimum Pulse Duration
    30 ms, 100 ms under load
    Maximum Delay Response
    100 ms
    Maximum Switching Voltage
    250 V
    Line Rated Current5 A
    Maximum Switching Current8 A
    Minimum Switching Current10 mA 5 V

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Contacts Type And Composition
    1 C/O timed contact, 1 C/O timed or instantaneous contact, 2 C/O
    Electromagnetic Compatibility
    electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, conducted and radiated emissions class B conforming to EN 55022
    Repeat Accuracy
    +/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1
    Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
    Temperature Drift
    +/- 0.05 %/°C, +/- 0.05 %/°C
    Time Delay Type
    power on-delay - A- Power on-delay relay, on-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal, power on-delay - At- Power on-delay relay w/ pause/summation (Y1), interval - B- Single interval relay w/ control signal, interval - Bw- Double interval relay w/ control signal, off-delay - C- Off-delay relay w/ control signal, symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off), symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on), interval - H- Interval relay, interval - Ht- Interval relay w/ pause/summation (Y1), A, Ac, At, B, Bw, C, D, Di, H, power on-delay, on-delay andinterval, off-delay, symmetrical flashing
    Contacts Composition
    2 C/O
    [Uimp] Rated Impulse Withstand Voltage
    5 kV 1.2-50 µs IEC 60664-1, 5 kV IEC 61812-1
    Carbon Footprint Of The Distribution Phase [A4]
    0.013573, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.00058866
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    64 kg CO2 eq., 64.379
    Local Publishable Date
    2025-11-25
    Future Imap
    63.53
    Stocking Flag
    N
    Manufacturing Carbon Footprint
    2.0143
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2502020EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Device Short Name
    RE22
    Electrical Durability
    100000 cycles for resistive load, 8 A at 250 V, AC
    Housing Material
    polycarbonate
    Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
    Mounting Position
    any position in relation to normal vertical mounting plane
    Number Of Functions
    10
    Power Consumption In W
    1.5 W 240 V DC
    Product Or Component Type
    modular timing relay
    Reset Time
    120 ms on de-energisation
    Shock Resistance
    15 gn 11 ms IEC 60068-2-27
    Supply Frequency
    50...60 Hz +/- 5 %
    Tightening Torque
    0.6-1 N.m IEC 60947-1
    Vibration Resistance
    20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
    Supply Voltage Num 3
    12...240 V AC/DC
    Database Version
    2018-03
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To control an event based on time. The contacts switch ON or OFF before or after some period of time to control automation industrial system. during 10 years with a 100% use rate, in compliance with French standard.
    Functional-unit Unit
    unité (unit)
    Energy Consumption On Product Lifetime, In Kwh
    131.4
    Energy Model - Installation [A5]
    Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity mix; AC; < 1kV; EU-27
    Width Nominal
    22.5 mm
    [Us] Rated Supply Voltage
    12...240 V AC/DC
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Air Pollution (M3) Total Life Cycle
    2997.1
    Air Pollution (M3) Operational Energy Use [B6]
    2770.9
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
    756.21
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
    730.75
    Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
    2.0143
    Hazardous Waste Disposed Of (Kg) Total Life Cycle
    2.7452
    Net Use Of Fresh Water (M3) Total Life Cycle
    233.44
    Non-hazardous Waste Disposed Of (Kg) Total Life Cycle
    240.64
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
    1148.2
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    1122.3
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
    26.364
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
    164.31
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    1.7611
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    1146.5
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    1122.3
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    163.5
    Water Pollution (M3) Manufacturing [A1-a3]
    282.48
    Water Pollution (M3) Operational Energy Use [B6]
    2656.5
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Control Typerotary knob front panel, with test button, with test button
    Function AvailableA- Power on-delay relay-2 C/O, Ac- On-delay and off-delay relay w/ control signal-2 C/O, At- Power on-delay relay w/ pause/summation (Y1)-2 C/O, B- Single interval relay w/ control signal-2 C/O, Bw- Double interval relay w/ control signal-2 C/O, C- Off-delay relay w/ control signal-2 C/O, D- Symmetrical flashing relay (starting pulse-off)-2 C/O, Di- Symmetrical flashing relay (starting pulse-on)-2 C/O, H- Interval relay-2 C/O, Ht- Interval relay w/ pause/summation (Y1)-2 C/O
    Safety Reliability DataB10d = 230000, MTTFd = 251.1 years
    Status LedGreen LED flashing)timing in progress, Green LED steady)power ON, Yellow LEDrelay energised
    Time Delay Range0.1...1 s, 6...60 s, 1...10 h, 1...10 min, 1...10 s, 10...100 h, 6...60 min
    Voltage Drift+/- 0.2 %/V, +/- 0.2 %/V
    Certificate AgencyCSA, CE, cULus, GL, RCM, CCC, EAC
    Connections - Terminalsscrew terminals, 2 x 1.5 mm² with cable end, screw terminals, 2 x 2.5 mm² without cable end, screw connectors
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.063429, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.0143
    Local Data StatusPublishable
    Return IndicatorY
    Future Msrp70.91
    Stock Policy2
    Use Carbon Footprint64.379
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Dielectric Strength2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
    Functionalitymultifunction
    Immunity To Microbreaks10 ms
    Mechanical Durability10000000 cycles
    Mounting Support35 mm DIN rail conforming to IEC 60715
    Power Consumption In Va3-3 VA 240 V AC
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony Timer Relays
    ReturnabilityYes
    Software VersionEIME 5.7.0.2
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint66 kg CO2 eq.
    Voltage Range0.85...1.1 Us
    Pep CodeENVPEP2502020EN
    Pep Verification Date2018-04-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
    Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
    Recyclability Potential, In %18
    [Uc] Control Circuit Voltage12...240 V
    Carbon Footprint (Kg Co2 Eq, Total Life Cycle)66.471
    Package Weight(Lbs)108.000 g
    Warranty (In Months)18
    Air Pollution (M3) Manufacturing [A1-a3]224.23
    Air Pollution (M3) End Of Life [C1-c4]1.3855
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]25.085
    Global Warming (Kg.Equivalent.Co2) Total Life Cycle66.471
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]64.379
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]2.5037
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]233.43
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]240.03
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]25.554
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle1312.6
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1285.8
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]163.5
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1.7611
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]23.793
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle164.1
    Water Pollution (M3) Total Life Cycle2944.1
    Water Pollution (M3) Distribution [A4]2.2321
    Water Pollution (M3) End Of Life [C1-c4]2.8209

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -20-60 °C, -20-60 °C
    Directives
    2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    66.471
    Environmental Disclosure
    ENVPEP2502020EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP2502020EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-30-60 °C, -30-60 °C
    Ip Degree Of ProtectionIP40 housing: conforming to IEC 60529, IP20 terminal block: conforming to IEC 60529, IP40 front face: conforming to IEC 60529
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2502020EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Relative Humidity93-93 %, without condensation IEC 60068-2-30
    Pep Verification Date2018-04-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    modular timing relay
    Range Of ProductHarmony Timer Relays

    ETIM

    ETIM 8
    EC001439
    ETIM 9EC001439

    Output Attributes

    Discrete Output Type
    relay
    Output Type
    relay
    Nominal Output Current8 A
