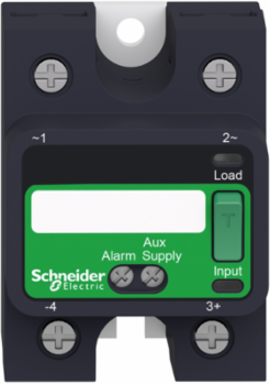

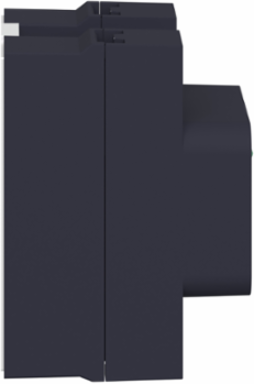

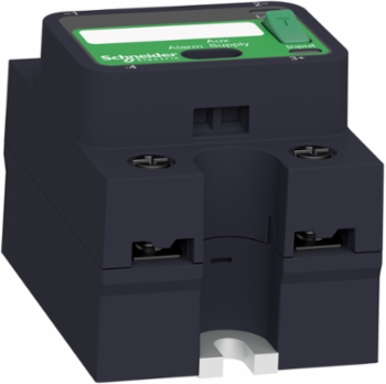

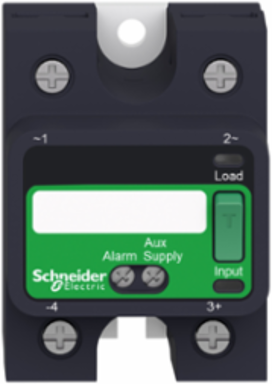

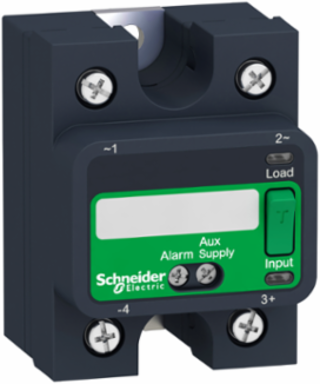

Schneider Electric SSP1A4125BDS Harmony Solid State Relay, 125 A, Panel Mount, 4-32 V DC Input, 48-660 V AC Output
- MPN: SSP1A4125BDS
- PPN: SCH-SSP1A4125BDS
CAD
$197.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

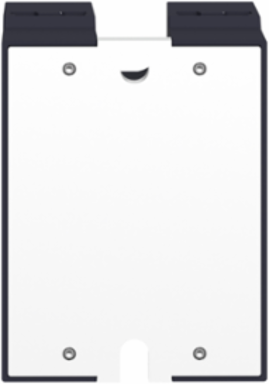

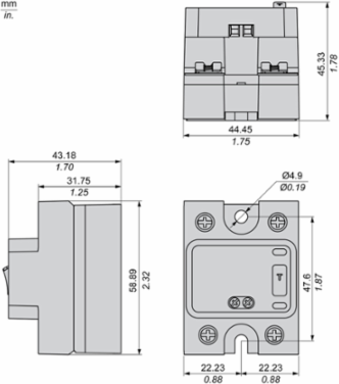

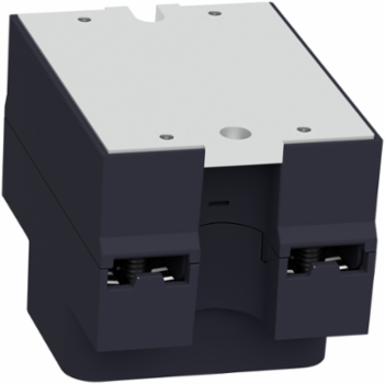

SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs. Its rated current is 125A, is controlled with a 4V to 32V DC circuit, has a rated load voltage of 48V to 660V AC output. It also has a test button for easy debugging, testing and commissioning. It mounts on metallic panel surface, with an excellent thermal dissipation capability thanks to its factory-installed thermal pad It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. This product conforms to international standard and certifications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Complementary Attributes
- Maximum Horse Power Rating
- 2 hp 120 V AC, 5 hp 240 V AC, 10 hp 480 V AC
- Absolute Maximum Voltage
- 1200 V
- Maximum Leakage Current
- 1 mA off-state
- Maximum Switching Voltage
- 1 V DC turn-off
- Minimum Switching Voltage
- 4 V DC turn-on
Maximum Voltage Drop<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
Line Rated Current125 A
Maximum Output Current30 mA 32 V DC
Minimum Load150 mA
Rated Current125 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- with test button, with test button
- Electromagnetic Compatibility
- electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2, electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test criteria A output ports conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test criteria B alarm port conforming to IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4, surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5, surge immunity test 2 kV criteria A output ports line to earth conforming to IEC 61000-4-5

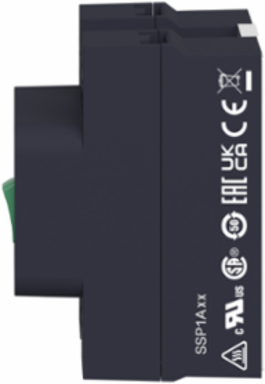

- Marking
- CE, EAC, CSA, UL
- Response Time
- 0.5 cycle (turn-on), 0.5 cycle (turn-off)
- Tightening Torque
- 1.5...1.7 N.m for input, 2...2.2 N.m for output, 17.7...19.47 lb.in for output, 13.27...15.04 lb.in for input, 0.5...0.6 N.m for auxillary terminal, 4.4...5.3 lb.in for auxillary terminal
- Certificate Agency
- CE, EAC, UL, CSA
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV output to case, 6 kV input to output
- Maximum I²T For Fusing
- 12709 A².s for 8.33 ms at 60 Hz, 13950 A².s for 10 ms at 50 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.022964
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.0766
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Use Carbon Footprint
- 9.8269
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cos Phi
- 0.5-0.5 (with maximum load)
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Mounting Support
- panel
- Phase
- 1 phase
- Product Or Component Type
- panel mount relay
- Range Of Product
- Harmony Solid State Relays
- Software Version
- EIME v5.8.1
- Thermal Resistance
- 0.22 °C/W junction to case
- Pep Code
- ENVPEP1505006EN
- Pep Verification Date
- 2019-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity Mix; AC; < 1kV; EU-27
- Recyclability Potential, In %
- 56
- Carbon Footprint (Kg Co2 Eq, Total Life Cycle)
- 10.94
- Package Weight(Lbs)
- 114.0 g
- Warranty (In Months)
- 18
- Air Pollution (M3) Manufacturing [A1-a3]
- 129.36
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 110.92
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 101.23
- Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
- 1.0766
- Hazardous Waste Disposed Of (Kg) Total Life Cycle
- 2.4702
- Non-hazardous Waste Disposed Of (Kg) Total Life Cycle
- 37.556
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 198.53
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 184.84
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 13.921
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 14.803
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 197.64
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 184.84
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 14.245
- Water Pollution (M3) Manufacturing [A1-a3]
- 218.34
- Water Pollution (M3) Operational Energy Use [B6]
- 412.34
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength4 kV AC for input/output, 4 kV AC for input or output to case
Local SignallingLED, steady, green ON status control input/test button actuated, LED, steady, amber ON status load, LED, flashing, amber control input to energise load, LED, steady, red open-circuit control input, LED, flashing, red load cut-off/short-circuit
Protection Device Typetype 1 - 80 A miniature circuit breaker (MCB) B, type 2 - 63 A miniature circuit breaker (MCB) B
Safety Reliability DataMTTFd = 1875.9 years, B10d = 1731395
Control Circuit Voltage4...32 V
[Uc] Control Circuit Voltage4...32 V DC, 4...32 V
Connections - Terminalsring lugs 11.7 x 4.5 mm output, screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input, screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output, screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input, screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output, forked type tag connectors 9.2 x 4 mm input, ring lugs 9.2 x 4 mm input, forked type tag connectors 11.7 x 4.5 mm output, screw connectors
Carbon Footprint Of The Distribution Phase [A4]0.012515, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00054394, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]10 kg CO2 eq., 9.8269
Local Publishable Date2026-01-12
Stocking FlagN
Manufacturing Carbon Footprint1.0766
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1505006EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Auxiliary Connection Terminalscrew-type connector, 0.5...1.5 mm² AWG 20...AWG 16)slotted Philips
Device Short NameSSP1
Load Current0.15-125 A
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Provided Equipmentthermal pad
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh16.644
Energy Model - Installation [A5]Electricity Mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; AC; < 1kV; EU-27
Dv/Dt500 V/µs off-state at maximum voltage
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Total Life Cycle552.36
Air Pollution (M3) Operational Energy Use [B6]421.44
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]9.3929
Global Warming (Kg.Equivalent.Co2) Total Life Cycle10.94
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]9.8269
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]2.3376
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]36.758
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]13.364
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle213.33
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]199.09
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]14.245
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]12.475
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle14.603
Water Pollution (M3) Total Life Cycle634.24
Water Pollution (M3) Distribution [A4]2.0581
Water Pollution (M3) End Of Life [C1-c4]1.4222
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-80 °C, -40-80 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 10.94
- Environmental Disclosure
- ENVPEP1505006EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1505006EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-125 °C, -40-125 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1505006EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2019-05-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Provided Equipment
- thermal pad
Product Or Component Typepanel mount relay
Range Of ProductHarmony Solid State Relays
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Solid State Output Type
- SCR output, zero voltage switching
- Output Switching Mode
- zero voltage switching
Maximum Output Current30 mA 32 V DC
Output Voltage48...660 V AC
Surge Protection And Filtering Attributes
- Surge Current
- 1750 A 16.6 ms
Input Attributes
- Cos Phi
- 0.5-0.5 (with maximum load)
Input Current Limits7-12 mA
Overview Attributes
- Device Presentation
- complete product
