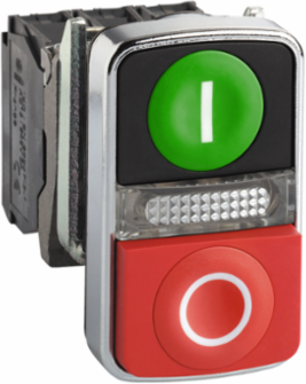

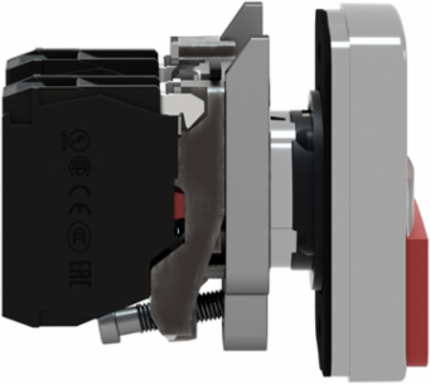

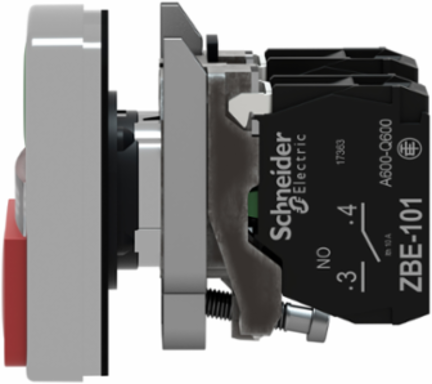

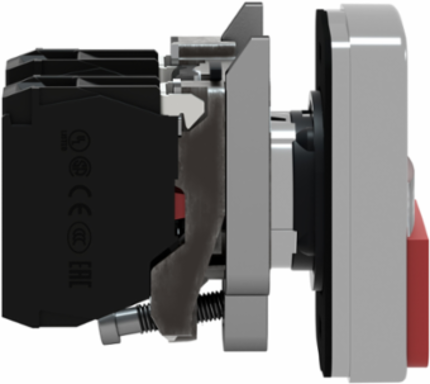

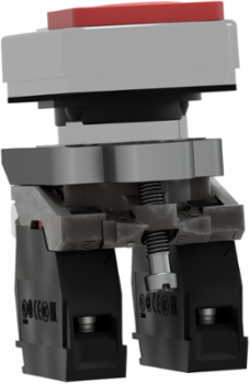

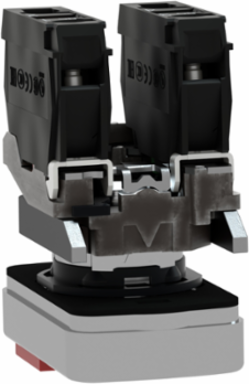

Schneider Electric XB4BW73731B5 Harmony XB4 Illuminated Push Button 22mm, Metal, IP66/IP69K
- MPN: XB4BW73731B5
- PPN: SCH-XB4BW73731B5
CAD
$116.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4 double-headed modular push button has 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism, is supplied with 24V AC/DC. It has a metal bezel. It is marked with "I" and "O" symbols. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Features
- The Schneider Electric Canada XB4BW73731B5 is a complete modular 22mm double-headed push button from the trusted Harmony XB4 series, featuring a space-saving rectangular head with one green flush button (marked "I") and one red projecting button (marked "O"). This dual-function layout saves critical panel real estate by condensing start and stop operations into a single standard cutout, eliminating the need to drill multiple holes for separate operator interfaces.
- Equipped with an integral protected LED and a central white pilot light, this assembly operates on a standard 24V AC/DC supply voltage (50/60 Hz). The bright, steady visual signaling has a prolonged service life of 100,000 hours, allowing operators to safely verify equipment status from a distance and reducing maintenance downtime caused by burnt-out incandescent bulbs.

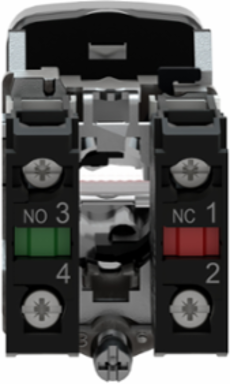

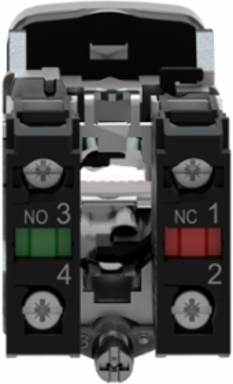

- This complete unit comes pre-configured with a 1NO + 1NC (Normally Open and Normally Closed) contact block arrangement utilizing high-reliability silver alloy (Ag/Ni) contacts with standard slow-break operations. Crucially for industrial safety compliance, the NC contact features a positive opening mechanism conforming to IEC 60947-5-1 appendix K, ensuring that emergency stop or standard stop commands execute reliably even in the event of minor contact welding.
- Designed with a heavy-duty chromium-plated metal bezel and a rugged Zamak fixing collar, this control unit boasts elite IP66, IP67, IP69, and IP69K ratings alongside UL Type 4X/13 enclosure certification. It withstands high-pressure washdowns up to 1,015.3 psi (7,000,000 Pa) at elevated temperatures, preventing water ingress and premature component failure in harsh automotive, food processing, or manufacturing environments.
- This panel-mount pilot device features shake-proof, classic screw-clamp terminals that accept standard wiring and are fully compatible with Philips, Pozidriv, or flathead screwdrivers. With a proven mechanical and electrical durability rating of up to 1,000,000 cycles, it guarantees exceptional long-term reliability and eliminates the need for periodic screw retightening on high-vibration control panels.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States

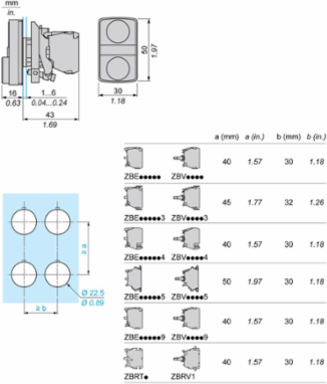

Depth59 mm
Physical Attributes
- Color Of Marking
- white marking when green, red or black caps, black marking when white caps
Light Source Colorwhite
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- no, 0
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross JIS No 1, cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Color Of Marking
- white marking when green, red or black caps, black marking when white caps
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Cap/Operator Or Lens Colour
- green, red
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2165779727, 0.2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 0.9783830409
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1808008EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 28 %
- Bulb Base
- integral LED
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO + 1 NC
- Current Consumption
- 18 mA
- Electrical Shock Protection Class
- class I conforming to IEC 60536
- Fixing Collar Material
- zamak
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mechanical Durability
- 1000000 cycles
- Operating Force
- 3.5 N NC changing electrical state3.8 N NO changing electrical state
- Operators Description

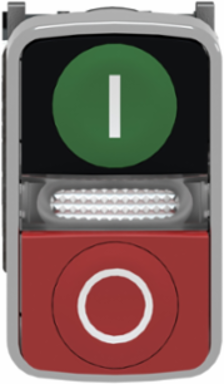

- green ''I'' - red ''O''
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB4
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Service Life
- 100000 h at rated voltage and 25 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 14 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Light Source Color
- white
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 50 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Short-circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Package Weight(Lbs)
- 124.800 g
- Take-back
- No
- Climate Change - Biogenics ( Kg Co2 Eq.) Operational Energy Use [B6]
- 0.0138
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 12.861
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 157.38
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 1.9222
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 285.02
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 54.953
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 54.953
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Operator Profile1 flush - 1 projecting push-buttons - 1 central pilot lightgreen flush, I white), red projecting, O white)
Supply Voltage24 V
Certificate AgencyCSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
[Us] Rated Supply VoltageAC/DC 50/60 Hz, 24 V
Carbon Footprint Of The Distribution Phase [A4]0.0207949318, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0191122807
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]13 kg CO2 eq., 12.861
Local Publishable Date2026-03-26
Stocking FlagY
Use Carbon Footprint12.861
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content17 %
Bezel Materialchromium plated metal
Compatibility CodeXB4
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Device Short NameXB4
Electromagnetic Emissionclass B IEC 55011
Head Typestandard
Light Sourceprotected LED
Mounting Diameter22.5 mm
Operating Travel1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
Positive Openingwith IEC 60947-5-1 appendix K
Product Or Component Typeilluminated double-headed push-button
Protective TreatmentTH
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To Fast Transients2 kV IEC 61000-4-4
ReturnabilityYes
Shape Of Signaling Unit Headrectangular
Signalling Typesteady
Supply Voltage Limits19.2-30 V DC21.6-26.4 V AC
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatorspring return
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1808008EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %75
Width Nominal30 mm
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]12.847
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]285.02
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]12.918
Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]0.028
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]339.97
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]285.02
Customs Code8536509035
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP69K IEC 60529, IP69 IEC 60529
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 14.0958682261
- Environmental Disclosure
- ENVPEP1808008EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level17 %
Mercury FreeYes
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1808008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- illuminated double-headed push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
