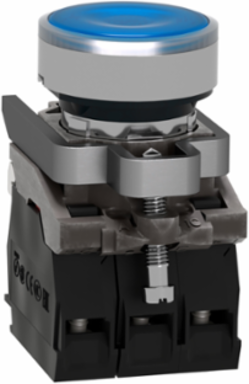

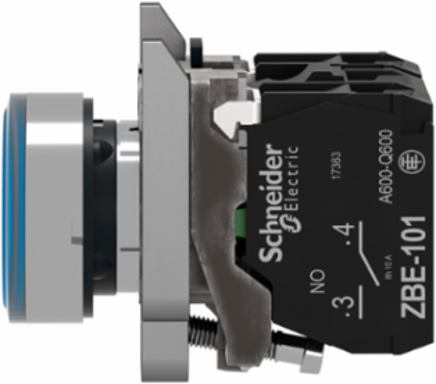

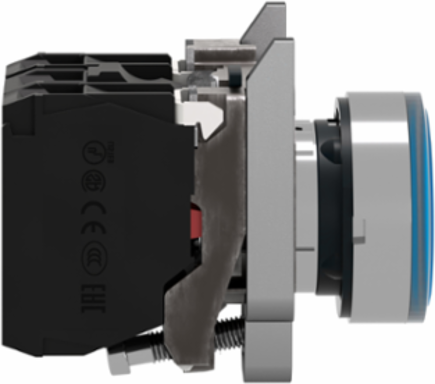

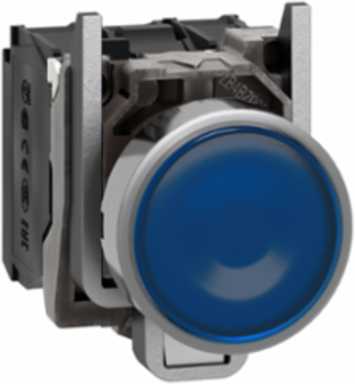

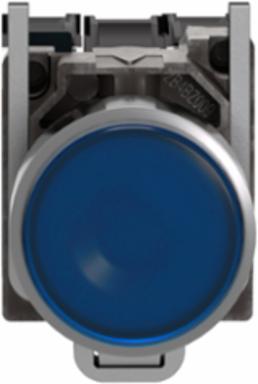

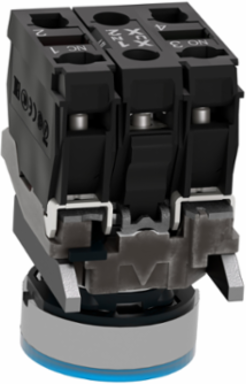

Schneider Electric XB4BW36B5 Harmony XB4 22mm Blue Illuminated Push Button, 24V AC/DC, IP66/IP67/IP69K

  • MPN: XB4BW36B5
  • PPN: SCH-XB4BW36B5
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $106.62

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony XB4 illuminated modular blue push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, Mexico, United States

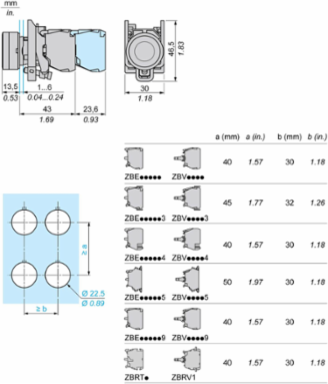

    Depth101 mm

    Physical Attributes

    Cap Operator Or Lens Color
    blue

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Customizable
    no, 1
    Electrical Reliability
    λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    Operating Travel
    1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel)
    Shape Of Screw Head
    cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Supply Voltage
    24 V
    Certificate Agency
    CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
    [Us] Rated Supply Voltage
    24 V, 24 V AC/DC 50/60 Hz
    Terminals Description Iso N°1
    (13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.1616004873, 0.2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.7 kg CO2 eq., 0.730024269
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    1
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Product Repair Index Dam Doc
    XB4BS8442-ENVREPAIR-A-EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Average Percentage Of Recycled Metal Content
    17 %
    Bezel Material
    chromium plated metal
    Compatibility Code
    XB4
    Contacts Material
    silver alloy (Ag/Ni)
    Contacts Usage
    standard contacts
    Device Short Name
    XB4
    Electromagnetic Emission
    class B IEC 55011
    Gcr Bridge
    XB4BWCUST03
    Important Message
    A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    Mechanical Durability
    10000000 cycles
    Operator Additional Information
    with plain lens
    Positive Opening
    with IEC 60947-5-1 appendix K
    Product Or Component Type
    illuminated push-button
    Protective Treatment
    TH
    Resistance To Electromagnetic Fields
    10 V/m IEC 61000-4-3
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity
    1
    Shape Of Signaling Unit Head
    round
    Software Version
    v5.9.4
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Type Of Operator
    spring return
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP1808008EN
    Pep Verification Date
    2023-08-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Height Nominal
    47 mm
    [Ith] Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Short-circuit Protection
    10 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)
    96.6 g
    Take-back
    No
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Operating Force3.5 N NC changing electrical state, 3.8 N
    Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Supply Voltage Limits19.2-30 V DC, 21.6-26.4 V AC
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
    Carbon Footprint Of The Distribution Phase [A4]0.0155162183, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0142607018
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.7 kg CO2 eq., 0.7245633803
    Local Publishable Date2026-03-26
    Stocking FlagY
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1808008EN
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content28 %
    Bulb Baseintegral LED
    Contact Operationslow-break

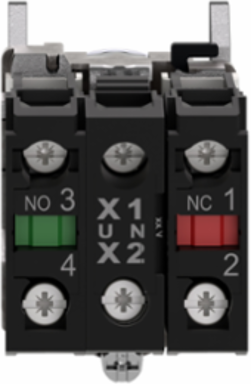

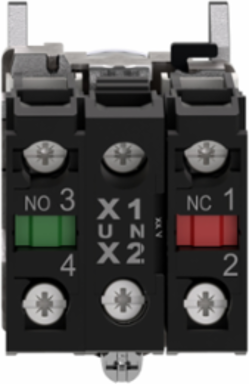

    Contacts Type And Composition1 NO + 1 NC
    Current Consumption18 mA
    Electrical Shock Protection Classclass I conforming to IEC 60536
    Fixing Collar Materialzamak
    Head Typestandard
    Light Sourceuniversal LED
    Mounting Diameter22.5 mm
    Operator Profileblue flush
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Repair IndexA
    Range Of ProductHarmony XB4
    Resistance To Fast Transients2 kV IEC 61000-4-4
    ReturnabilityYes
    Service Life100000 h at rated voltage and 25 °C
    Signalling Typesteady
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint2 kg CO2 eq.
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Cap Operator Or Lens Colorblue
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionHarmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    Width Nominal30 mm
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    Cap/Operator Or Lens Colourblue
    Nbr. Of Units In Pkg.1
    Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67, IP69, IP69K
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    1.6459650567
    Environmental Disclosure
    ENVPEP1808008EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2023-08-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
    Recycled Metal Content At Cr Level17 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1808008EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP1808008EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    illuminated push-button
    Range Of ProductHarmony XB4

    ETIM

    ETIM 8
    EC001028
    ETIM 9EC001028

    Surge Protection And Filtering Attributes

    Surge Withstand
    1 kV IEC 61000-4-5

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
    Loading video…
