Schneider Electric ZB4BC28001RA Push button head, Harmony XB4, metal, flush, black, 22mm, spring return, for harsh environment, marking legend rotated 90 degree
Schneider Electric ZB4BC28001RA Push button head, Harmony XB4, metal, flush, black, 22mm, spring return, for harsh environment, marking legend rotated 90 degree
- MPN: ZB4BC28001RA
- PPN: SCH-ZB4BC28001RA
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$100.46/ EA
Description

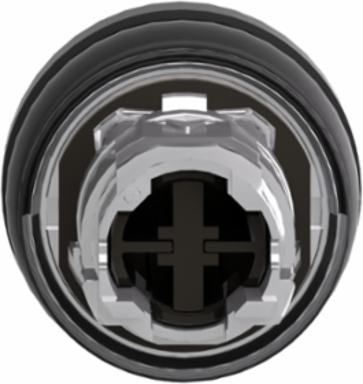

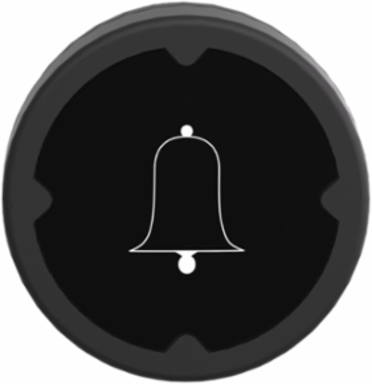

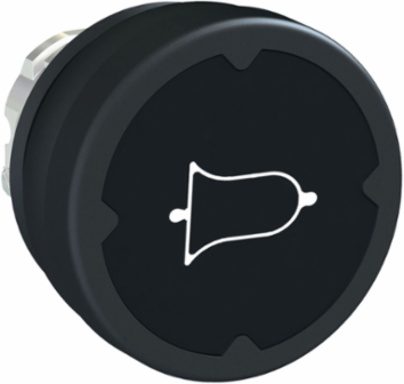

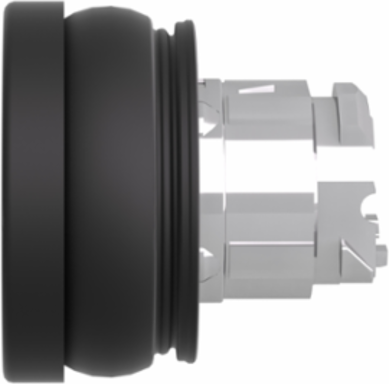

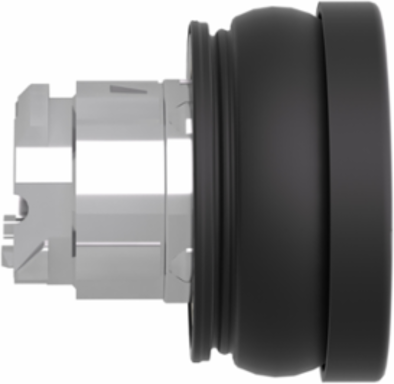

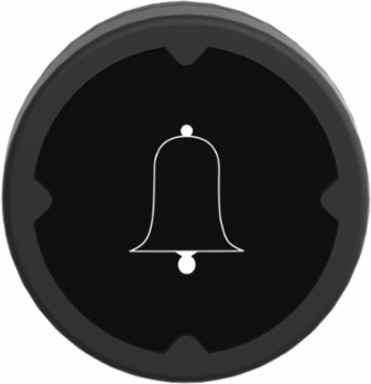

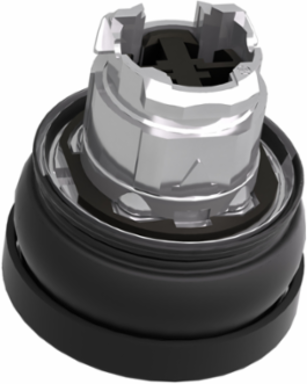

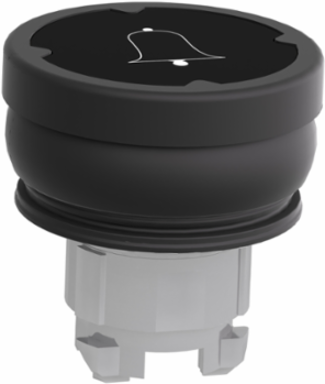

This head for push button is a separate component of the range of control and signaling units, Harmony XB4, metal, diameter 22mm. It has a chromium-plated metal bezel. It is supplied with a black flush cap, diameter 37mm, marked type H001 white, with bell symbol. The marking-legend is rotated 90°. This head allows the associated contact block to be mounted in horizontal position (instead of vertical). It operates with with spring return mechanism. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP69 / IP69K, making it ideal for operation in harsh environments. It weighs 36g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications
Specifications
Environment
- Product Certifications
- CE || UL || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69K || IP69
- Ambient Air Temperature For Storage
- -40-85 °C
Ik Degree Of ProtectionIK06 conforming to IEC 62262
StandardsIEC 60947-5-1 || CSA C22.2 || IEC 60947-1 || UL 508
Resistance To High Pressure Washer90 Pa 82.5 °C
Nema Degree Of ProtectionNEMA 4 UL 508 || NEMA 13 || NEMA 12
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Operator Additional Information
- horizontal mounting
- Type Of Operator
- spring return
- Colour Of Marking
- white
- Shape Of Signaling Unit Head
- round
- Net Weight
- 0.036 kg
- Cap/Operator Or Lens Colour
- black
- Mechanical Durability
- 3000000 cycles
- Electrical Shock Protection Class
- class I IEC 61140

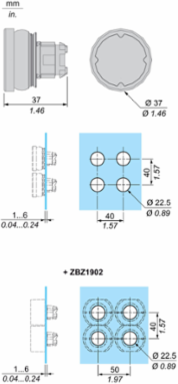

- Cad Overall Depth
- 37 mm
Main Groupharsh environment
Electrical Composition CodeC1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Cad Overall Height18.5 mm
Operator Profileblack flush, type H001 white)
Markingtype H001
Cad Overall Width37 mm
Group Of Productflush marked type H001
Specifications
- Range Of Product
- Harmony XB4
- Product Or Component Type
- head for push-button
- Sale Per Indivisible Quantity
- 1
- Device Short Name
- ZB4
Mounting Diameter22 mm
Head Typestandard
Bezel Materialchromium plated metal
