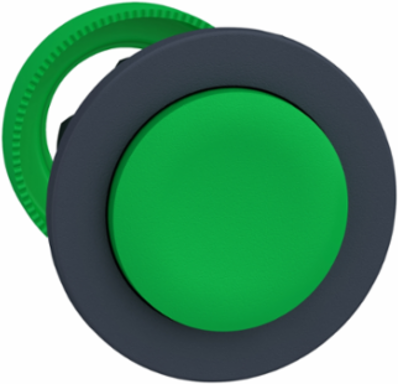

Schneider Electric ZB5FL3 Harmony XB5, Flush mounted push button head, plastic, projecting, green, 30mm, spring return, unmarked, dark grey bezel

  • MPN: ZB5FL3
  • PPN: SCH-ZB5FL3
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $29.14

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil

    Physical Attributes

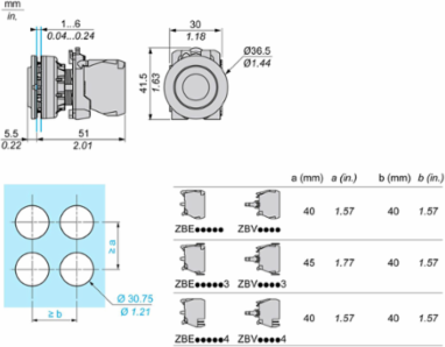

    Cad Overall Depth
    32 mm
    Cad Overall Width
    37 mm
    Cad Overall Height37 mm
    Cap Operator Or Lens Colorgreen

    Important Information Attributes

    Customizable
    1, no
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    Carbon Footprint Of The Distribution Phase A4
    0.010943382456435806, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A5
    0.008263027011112692, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6
    0 kg CO2 eq., 0
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2303008EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Average Percentage Of Recycled Metal Content
    29 %
    Bezel Material
    dark grey plastic
    Device Short Name
    ZB5
    Group Of Product
    projecting push non illum
    Main Group
    push-button
    Mechanical Durability
    10000000 cycles
    Operator Profile
    green projecting, unmarked
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Protective Treatment
    TH
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity
    1
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    0.3 kg CO2 eq.
    Cap Operator Or Lens Color
    green
    Pep Code
    ENVPEP2303008_V2
    Pep Verification Date
    2024-03-24
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; APAC
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; APAC
    Electrical Composition CodeC1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting
    Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.05664724898405747
    Carbon Footprint Of The Manufacturing Phase A1 To A30.2 kg CO2 eq., 0.23228144588647665
    Certificate AgencyCSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeOut
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content6 %
    Compatibility CodeZB5
    Gcr BridgeZB5FLCUST01
    Head Typebuilt-in-flush
    Markingunmarked
    Mounting Diameter30.5 mm
    Overvoltage Categoryclass II conforming to IEC 60536
    Product Or Component Typehead for non-illuminated push-button
    Range Of ProductHarmony XB5
    ReturnabilityYes
    Shape Of Signaling Unit Headround
    Sustainable PackagingYes
    Type Of Operatorspring return
    Warranty In Months18
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionXB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; APAC

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    0.3081351043380826
    Environmental Disclosure
    ENVPEP2303008_V2
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2024-03-24
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Product CompatibilityZBYF..., ZBZF32, ZBZF33, ZB5AZ
    Recycled Metal Content At Cr Level29 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2303008EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2303008_V2
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    head for non-illuminated push-button
    Range Of ProductHarmony XB5

    ETIM

    ETIM 8
    EC000221
    ETIM 9EC000221

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
